No matter what the conditions require, operating at a variety of line voltages between 120V to 480V, whether located in high ambient temperature environments (requiring a 90° C rating) or not, our family of Philips Advance Centium ballasts are ideal for a wide variety of applications.
Brand | Philips Lighting |
---|---|
UPC | 781087047866 |
Store Location (Lititz, PA) | Aisle 10, Section D3 |
Package Length (in) | 17.00" |
Package Width (in) | 2.60" |
Package Height (in) | 2.00" |
Manufacturer Part Number | 209361 |

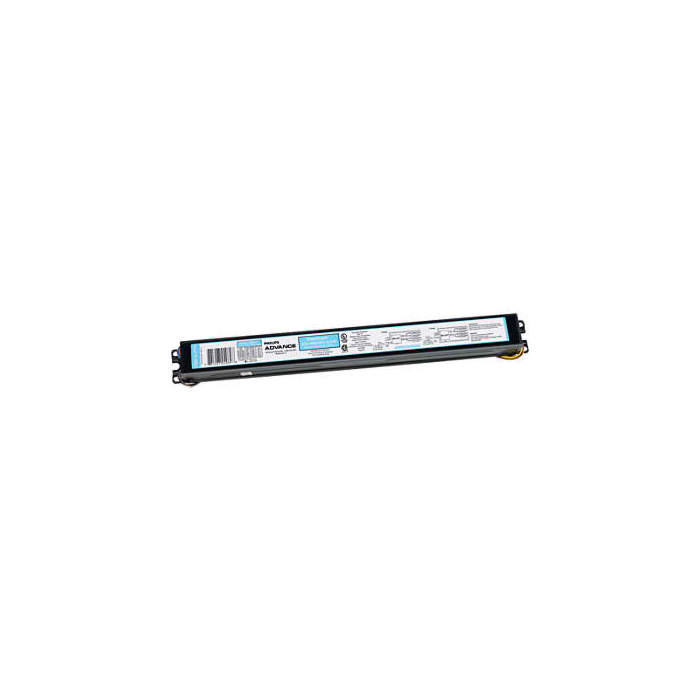

Full product name | ELE BALLAST (4) F54T5HO 120-277V |
Product number | ICN4S5490C2LSG35I |
Bar code on case | 30781087047867 |
Short product name | ELE BALLAST (4) F54T5HO 120-277V |
Logistics code(s) | 913710268501 |
Bar code on pack | 781087047866 |
Pieces per Sku | 1 |
eop_net_weight_pp | 0.894 kg |
Skus/Case | 6 |
T-case maximum | 90 C |
catalog | ICN4S5490C2LSG35I |
idwItemCtrl | 781087047866 |
upc | 781087047866 |
gtin | 00781087047866 |
brandLabel | PHILIPS ADVANCE |
unspsc | 39101901 |
igcc | 3700 |
idwIndex | 9368481 |
sequenceId | 180 |
Height C1 | 1.18 in |
Length A2 | 16.34 in |
Width B1 | 1.70 in |
Length A1 | 16.70 in |
Lamp Connection | Series |
Max Dist.Ball to Lamp(Through) | Blue & Brown = 20' |
Color output terminals | No terminals |
Wire Gauge | 18AWG |
Max Dist. Ball to Lamp(Tandem) | Blue & Brown = 20' |
Allowed Wiring Config(Tandem) | Yes |
Color input terminals | No terminals |
Allowed Wiring Config(Through) | Yes |
Max Dist. Ball to Lamp(Remote) | 20' |
Wire Striplength | 0.50/0.375 mm |
Wire Length by Color | See data sheet |
Allowed Wiring Config(Remote) | Yes |
Connector type | No connector |
Wire Type | Solid |
Input Voltage | 120-277 V |
Suitable for Outdoor use? | Yes |
Line Frequency | 50/60 Hz |
Family Name | Centium |
Number of Lamps | 3/4 piece |
Ballast Type | Electronic Fluorescent |
Housing Dimensions | 16.7" x 1.7" x 1.18" |
Starting Method | Programmed Start |
Base Model | ICN4S5490C2LSG |
Housing | G |
Lamp Type | F54T5/HO |
Housing Material | Metal |
Power Factor | 0.98 |
Ignition time | 1.5 s |
Ballast Efficacy Factor | 0.42 - |
Max THD | 10 % |
Automatic restart | Yes |
Sound Rating | A |
Lamp Current Crest Factor | 1.7 - |
Ballast factor | 1 - |
Input Power Gear | 240-234 W |
FIDE Certificate | No |
CEE Rated | No |
CEC Listing | Yes |
SASO Certificate | No |
DOE | No |
NOM certificate | Yes |
CSA E | No |
RoHS Compliant | Yes |
NEMA Premium | No |
EMC Immunity | FCC Non-Consumer |
Energy Star | No |
UL Listed | Yes |
cUL certificate | No |
CSA certificate | Yes |
Approbation Marks | UL, CSA, RoHS |
Circle E logo | No |
UL Recognized | No |
Rated Lamp Watts | 54W |
