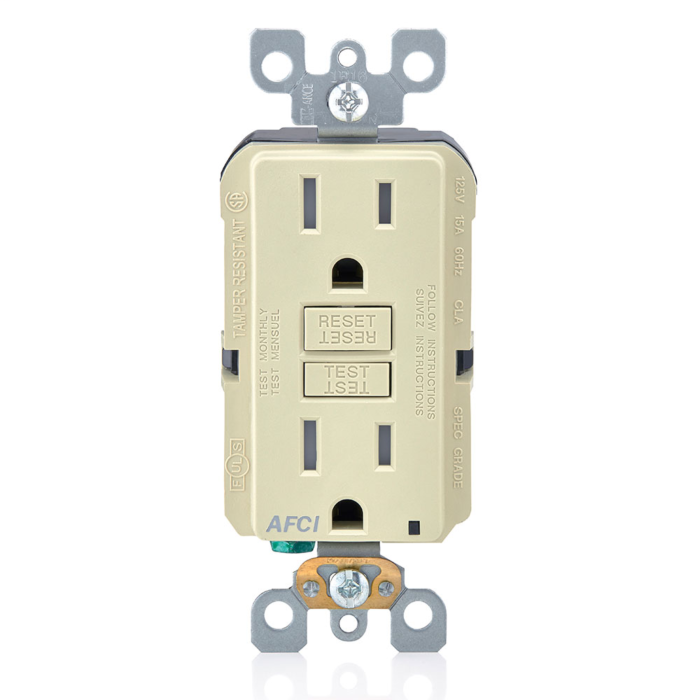

15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Tamper-Resistant, AFCI Receptacle/Outlet, Monochromatic, back and side wired, without wallplate/faceplate, screws and self grounding clip included - Ivory
SKU: LAFTR1 | Location: Aisle 09, Section D4
$25.99
PICKUP
Your store: PaulB Lititz, PA |
DELIVERY
Ship to your home or business
3 In stock
Features
Specifications
Downloads
15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Tamper-Resistant, AFCI Receptacle/Outlet, Monochromatic, back and side wired, without wallplate/faceplate, screws and self grounding clip included - Ivory
- Use of TEST and RESET buttons is similar to traditional GFCI receptacles of which consumers have become familiar with. This translates into greater acceptance of the technology and a more user-friendly platform
- Automatically tests the AFCI every time the RESET button is depressed; the AFCI will not reset if the AFCI circuit is not functioning properly
- By blocking reset of the AFCI if protection has been compromised, the SmartlockPro OBC AFCI reduces the possibility of end-users incorrectly assuming that a reset AFCI is providing protection when its functionality has been compromised
- A line-load reversal diagnostic feature is provided which prevents the AFCI from being reset and stops power from being fed to the AFCI receptacle face or through to downstream devices; a green LED indicator on the AFCI’s face also illuminates to alert the installer to a line-load wiring reversal when the device is in the tripped state
- TR symbol indicates the device’s compliance with the latest NEC® requirements for tamper-resistant receptacles in residences and childcare facilities
- Device design reduces nuisance tripping
- Impact-resistant thermoplastic cover and body
- Superior resistance to electrical surges and over-voltages
- Terminals allow for easy wiring options – back and side wire capable
- Compatible with all Decora® devices and wallplates; available in select colors
- Meets or exceeds UL requirements for tripping time on both series and parallel arcs
| Brand | Leviton |
|---|---|
| UPC | 078477657850 |
| Store Location (Lititz, PA) | Aisle 09, Section D4 |
| Package Length (in) | 6.00" |
| Package Width (in) | 4.00" |
| Package Height (in) | 1.80" |
| Manufacturer Part Number | R31-AFTR1-0KI |
| NOM | 057 |
| CSA Technical Information Letter No. M-02A | Yes |
| UL1699.A | File E342815 |
| CSA C22.2 No. 42 | Yes |
| UL498 | Yes |
| ANSI | C-73 |
| UL Fed Spec WC-596 | Yes |
| NEMA | 5-15R |
| Line Contacts | Brass Double-Wipe .031 Thick |
| Product ID | Ratings are permanently marked on device |
| Face Material | Thermoplastic |
| Terminal Accom. | 14-10 AWG |
| Terminal Screws | Plated Steel |
| Notes | Wallplate Sold Separately |
| Grounding Screw | Plated Steel |
| Body Material | Polycarbonate |
| Yoke | Zinc-Plated Steel |
| Clamps | Brass |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Amperage | 15 A |
| Warranty | 2-Year Limited |
| Wire | 3 |
| Color | Ivory |
| Series | AFTR1 |
| Standards and Certifications | UL/CSA |
| Strap Material | Galvanized Steel |
| Feature | Tamper-Resistant |
| Pole | 2 |
| Voltage | 125 VAC |
| Grounding | Self-Grounding |
| Termination | Back & Side |
| Country Of Origin | China |
| At Rated Voltage | 1 HP |
| Type | Duplex Receptacle |
| Flammability | Rated V-2 per UL 94 |
| Operating Temperature | -35C to +66C |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Temperature Rise | Max 30C after 100 cycles OL at 150 percent rated current |
