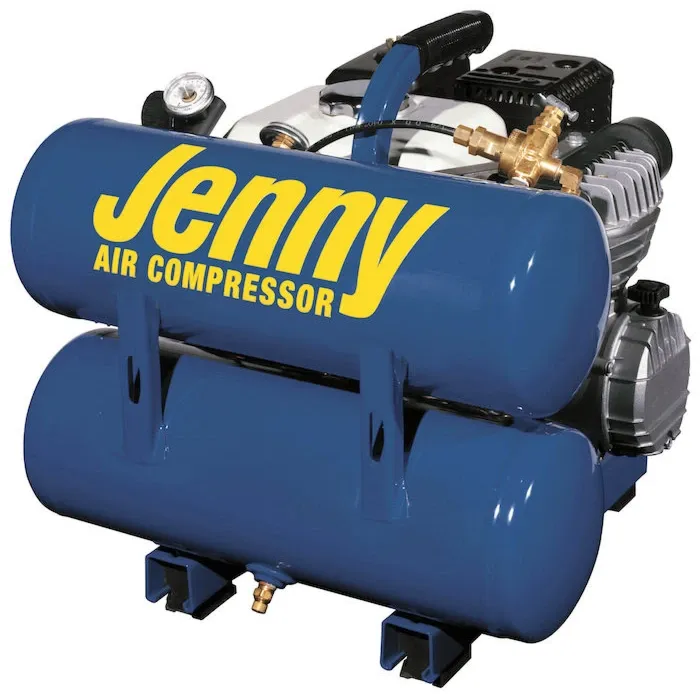

4 hp 1 1 Hand-Carry Compressor

Jenny's AM840-4HG-HC4V is a lightweight and compact hand-carry compressor powered by a 4 horsepower Honda engine. Featuring a 4 gallon twin-stack tank, the unit produces 4.7 cfm at 100 PSI (4.4 cfm at 125 PSI) delivering high power in a portable package. The compressor features a single-stage, direct-coupled pump, built with a cast-iron cylinder for longer service life and an aluminum head to allow better dissipation of heat. Other standard performance components include a high-quality pilot valve, pneumatic throttle idle control and special unloading valves to assist in motor/engine starting. Designed for minimal and simplified maintenance, the AM840-4HG-HC4V Compressor is built with a pressure relief safety valve, an air-line regulator and easy-to-reach manual tank drains. The tank and frame assembly are constructed of heavy-duty powder-coated steel and integrated anti-vibration feet cut down on unnecessary movement and wear during operation. To help ensure thorough lubrication of the compressor’s pistons, crankshaft, bearings, rings and cylinders, the compressor is shipped with an initial oil fill of Jenny Ultimate Blue compressor-pump oil.

• Powered by a 4-horsepower Honda engine
• 4-gal. twin-stack tank
• Produces 4.7 CFM @ 100 PSI (4.4 CFM at 125 PSI)
• Single-stage, direct-coupled pump, built with a cast-iron cylinder for longer service life and an aluminum head to allow better dissipation of heat
• High-quality pilot valve, pneumatic throttle idle control and special unloading valves to assist in motor/engine starting
• Built with a pressure relief safety valve, an air-line regulator and easy-to-reach manual tank drains
