Amec

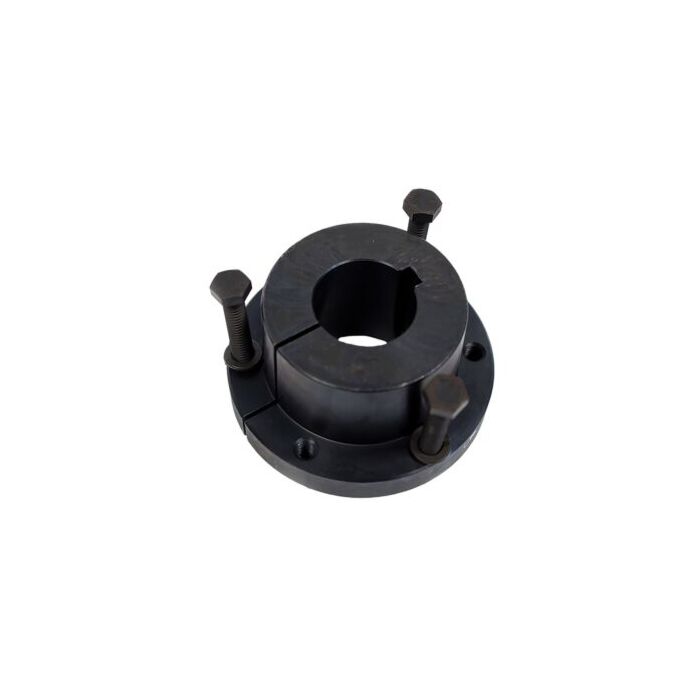

Amec QD Style Bushing, Type SH

1-5/16" QD Style Bushing, Type SH

SH Bushing 5/8"

SH Bushing 1-3/16"

SH Bushing 1-3/8"

SH Bushing 1-9/16 Bore

SH Bushing 7/8"

SH Bushing 15/16" Bore

SH Bushing 1-1/4"

SH Bushing 1-1/2"

SH Bushing 13/16" Bore

SH Bushing 1-1/8"

SH Bushing 1-7/16

SH Bushing 9/16"

SH Bushing 3/4"

SH Bushing 1"

SH Bushing 1-5/8"

SKU: SHA-
SKU: SH21A
SKU: SH10A
SKU: SH19A
SKU: SH22A
SKU: SH25A
SKU: SH14A
SKU: SH15A
SKU: SH20A
SKU: SH24A
SKU: SH13A
SKU: SH18A
SKU: SH23A
SKU: SH9A
SKU: SH12A
SKU: SH16A
SKU: SH26A

Need More?

Need more than what's currently in stock? We can help!

Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
Select options to see availability
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down

Options

Features chevron-down chevron-up
1-5/16" QD Style Bushing, Type SH
1-5/16" QD Style Bushing, Type SH
SH Bushing 5/8"
  • Amec QD Style Bushing
  • Reversible Mounting Bolts
SH Bushing 1-3/16"
  • Amec QD Style Bushing
  • Reversible Mounting Bolts
SH Bushing 1-3/8"
  • Amec QD Style Bushing
  • Reversible Mounting Bolts
SH Bushing 1-9/16 Bore
  • Amec QD Style Bushing
  • Reversible Mounting Bolts
SH Bushing 7/8"
  • Amec QD Style Bushing
  • Reversible Mounting Bolts
SH Bushing 15/16" Bore
SH Bushing 1-1/4"
  • Amec QD Style Bushing
  • Reversible Mounting Bolts
SH Bushing 1-1/2"
  • Amec QD Style Bushing
  • Reversible Mounting Bolts
SH Bushing 13/16" Bore
SH Bushing 1-1/8"
  • Amec QD Style Bushing
  • Reversible Mounting Bolts
SH Bushing 1-7/16
  • Amec QD Style Bushing
  • Reversible Mounting Bolts
SH Bushing 9/16"
  • Amec QD Style Bushing
  • Reversible Mounting Bolts
SH Bushing 3/4"
  • Amec QD Style Bushing
  • Reversible Mounting Bolts
SH Bushing 1"
  • Amec QD Style Bushing
  • Reversible Mounting Bolts
SH Bushing 1-5/8"
  • Amec QD Style Bushing
  • Reversible Mounting Bolts
Specifications chevron-down chevron-up
Brand Amec
Package Length (in) 2.40"
Package Width (in) 1.00"
Package Height (in) 3.00"
Manufacturer Part Number SH X 1-5/16"
Type Finished Bore
Bore Diameter 1-5/16 in
Bushing Type SH
Barrel Diameter 1.871 in
Flange Diameter 2-11/16 in
Overall Length 1-5/16 in
Material Cast Iron
Bolt Circle Diameter 2-1/4 in
Flange Thickness 7/16 in
Number of Bolt Holes 3
Screw Size 1/4 in-20 x 1-3/8 in
Torque Rating 6 ft-lb
Keyway 5/16 x 5/32 in
Brand Amec
Package Length (in) 2.40"
Package Width (in) 1.00"
Package Height (in) 3.00"
Manufacturer Part Number SH X 1-5/16"
Type Finished Bore
Bore Diameter 1-5/16 in
Bushing Type SH
Barrel Diameter 1.871 in
Flange Diameter 2-11/16 in
Overall Length 1-5/16 in
Material Cast Iron
Bolt Circle Diameter 2-1/4 in
Flange Thickness 7/16 in
Number of Bolt Holes 3
Screw Size 1/4 in-20 x 1-3/8 in
Torque Rating 6 ft-lb
Keyway 5/16 x 5/32 in
Brand Amec
Package Length (in) 2.20"
Package Width (in) 1.00"
Package Height (in) 3.00"
Manufacturer Part Number SHX5/8
Type Bushing
Inner_diameter 5/8"
Style SH Bushing
Features 3/16" Keyway
Brand Amec
Package Length (in) 2.40"
Package Width (in) 1.20"
Package Height (in) 3.00"
Manufacturer Part Number SHX1 3/16
Type Bushing
Inner_diameter 1-3/16"
Style SH Bushing
Features 1/4" Keyway
Brand Amec
Package Length (in) 2.40"
Package Width (in) 1.00"
Package Height (in) 3.00"
Manufacturer Part Number SHX1 3/8
Type Bushing
Inner_diameter 1-3/8"
Style SH Bushing
Features 5/16" Keyway
Brand Amec
Package Length (in) 2.40"
Package Width (in) 1.00"
Package Height (in) 3.00"
Manufacturer Part Number SH X 1-9/16
Type Bushing
Inner_diameter 1-9/16"
Style SH Bushing
Features 3/8" Keyway
Brand Amec
Package Length (in) 2.20"
Package Width (in) 1.20"
Package Height (in) 3.00"
Manufacturer Part Number SHX7/8
Type Bushing
Inner_diameter 7/8"
Style SH Bushing
Features 3/16" Keyway
Brand Amec
Package Length (in) 2.00"
Package Width (in) 1.20"
Package Height (in) 3.00"
Manufacturer Part Number SH X 15/16"
Type Bushing
Inner_diameter 15/16"
Style SH Bushing
Features 1/4" Keyway
Brand Amec
Package Length (in) 2.20"
Package Width (in) 1.20"
Package Height (in) 3.00"
Manufacturer Part Number SHX1 1/4
Type Bushing
Inner_diameter 1-1/4"
Style SH Bushing
Features 1/4" Keyway
Brand Amec
Package Length (in) 2.40"
Package Width (in) 1.20"
Package Height (in) 3.00"
Manufacturer Part Number SHX1 1/2
Type Bushing
Inner_diameter 1-1/2"
Style SH Bushing
Features 3/8" Keyway
Brand Amec
Package Length (in) 2.60"
Package Width (in) 1.20"
Package Height (in) 3.60"
Manufacturer Part Number SH X 13/16"
Type Bushing
Inner_diameter 13/16"
Style SH Bushing
Features 3/16" Keyway
Brand Amec
Package Length (in) 2.40"
Package Width (in) 1.20"
Package Height (in) 3.20"
Manufacturer Part Number SHX1 1/8
Type Bushing
Inner_diameter 1-1/8"
Style SH Bushing
Features 1/4" Keyway
Brand Amec
Package Length (in) 2.00"
Package Width (in) 3.40"
Package Height (in) 1.60"
Manufacturer Part Number SHX1 7/16
Type Bushing
Inner_diameter 1-7/16"
Style SH Bushing
Features 3/8" Keyway
Brand Amec
Package Length (in) 2.80"
Package Width (in) 1.40"
Package Height (in) 3.00"
Manufacturer Part Number SHX9/16
Type Bushing
Inner_diameter 9/16"
Style SH Bushing
Features 1/8" Keyway
Brand Amec
Package Length (in) 2.20"
Package Width (in) 1.20"
Package Height (in) 3.00"
Manufacturer Part Number SHX3/4
Type Bushing
Inner_diameter 3/4"
Style SH Bushing
Features 3/16" Keyway
Brand Amec
Package Length (in) 2.40"
Package Width (in) 1.40"
Package Height (in) 3.00"
Manufacturer Part Number SHX1
Type Bushing
Inner_diameter 1"
Style SH Bushing
Features 1/4" Keyway
Brand Amec
Package Length (in) 2.80"
Package Width (in) 2.60"
Package Height (in) 1.60"
Manufacturer Part Number SHX1 5/8
Type Bushing
Inner_diameter 1-5/8"
Style SH Bushing
Features 3/8" Keyway
Downloads chevron-down chevron-up

download  QD Bushings Sheave Install/Removal

download  QD Bushing Dimensions
