ATP

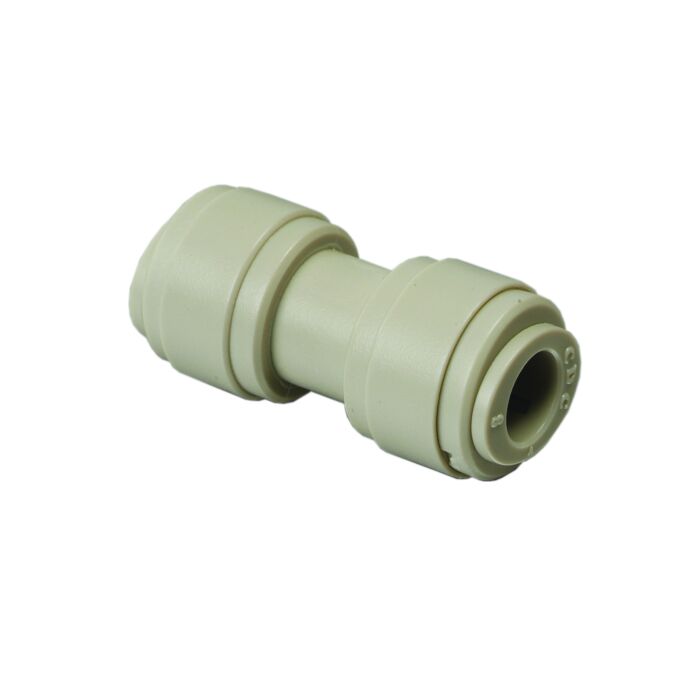

Fluidfit Union Straight & Reducer - 3/8 in. x 1/4 in.
SKU: A6UC4MG
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$3.39
Features
Specifications
Union Straight Fittings feature two opposing push-to-connect ports.
- Engineered O-ring increases seal compression on tube
- Push button release
- NSF 61 Certified for use with potable/drinking water
- NSF 51 Certified for use with food & beverage equipment
| Brand | ATP |
|---|---|
| UPC | 719852915348 |
| Store Location (Lititz, PA) | Aisle 11, Section H4 |
| Package Length (in) | 1.00" |
| Package Width (in) | 0.60" |
| Package Height (in) | 0.20" |
| Manufacturer Part Number | HUC3/8-1/4 |
| Country of Origin | United States |
| Specifications Met | NSF/ANSI/CAN 61 | NSF/ANSI 51 | FDA |
| Division | Fluid System Connectors Division |
| Maximum Operating Pressure | 300 psi | 20 bar |
| O-Ring Material | EPDM |
| Maximum Operating Temperature | 180 °F | 82.2 °C |
| Minimum Operating Temperature | -20 °F | -29 °C |
| Dimensional Weight | 0.17805755395683454 lb |
| Shape | Union |
| Connection 1 Size | 3/8" |
| Body Material | Acetal |
| Color | Gray |
| Connection 1 Type | Push-to-Connect |
| Connection 2 Size | 1/4" |
| Connection 2 Type | Push-to-Connect |
| Configuration | Tube to Tube |
