Features
Specifications

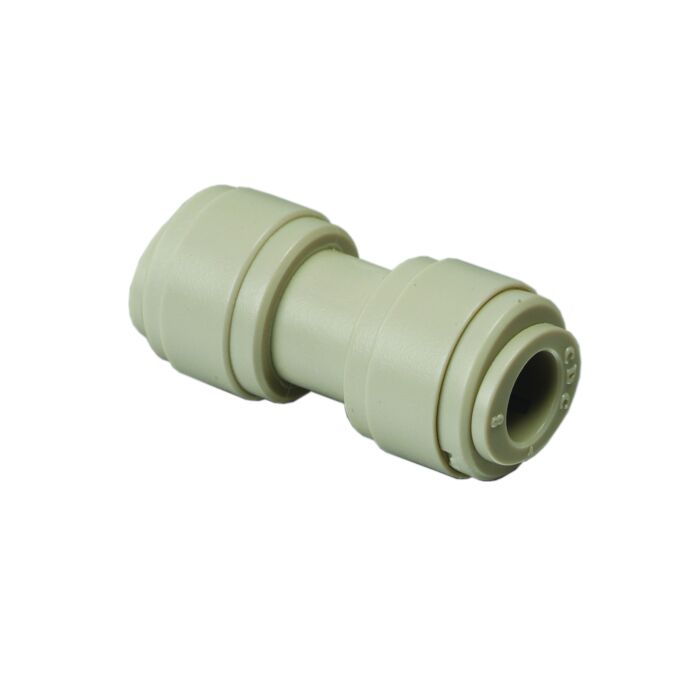

Union Straight Fittings feature two opposing push-to-connect ports.
- Engineered O-ring increases seal compression on tube Push button release
- Push button release
- NSF 51 Certified for use with food & beverage equipment
- NSF 61 Certified for use with potable/drinking water
| Brand | ATP |
|---|---|
| UPC | 719852915133 |
| Store Location (Lititz, PA) | Aisle 11, Section H4 |
| Package Length (in) | 1.60" |
| Package Width (in) | 0.40" |
| Package Height (in) | 0.20" |
| Manufacturer Part Number | HUC3/8-3/8 |
| Country of Origin | United States |
| Dimensional Weight | 0.29136690647482016 lb |
| Minimum Operating Temperature | -20 °F | -29 °C |
| Maximum Operating Temperature | 82.2 °C | 180 °F |
| Specifications Met | FDA | NSF/ANSI 51 | NSF/ANSI/CAN 61 |
| Division | Fluid System Connectors Division |
| Maximum Operating Pressure | 20 bar | 300 psi |
| O-Ring Material | EPDM |
| Shape | Union |
| Connection 1 Size | 3/8" |
| Body Material | Acetal |
| Color | Gray |
| Connection 1 Type | Push-to-Connect |
| Connection 2 Type | Push-to-Connect |
| Configuration | Tube to Tube |
| Connection 2 Size | 3/8" |
