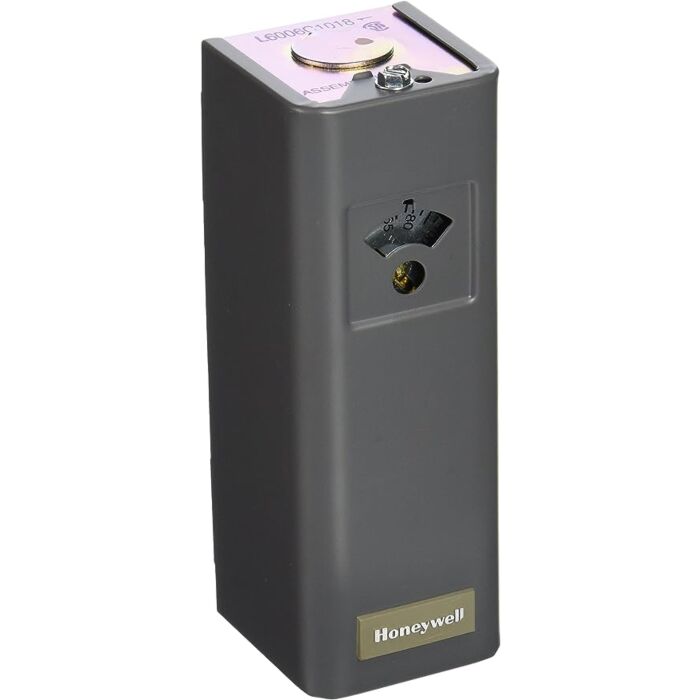

Aquastat® Controllers are immersion type devices for limiting or regulating the temperature of liquids in boilers, storage tanks and other applications where temperature control is required.
- Totally enclosed Micro Switch™ snap-acting switches operate on temperature rise to set point
- Visible control point scale and external adjustment screw permit easy setting
- Horizontal or vertical insertion of the sensing element
- Direct, well immersion or surface mounting of the sensing element available
- Remote bulb model may be used to sense air temperature in ducts and in outside air sensing applications
- Direct or well immersion Tradeline models include heat-conductive compound
Brand | Honeywell |
---|---|
UPC | 818256928166 |
Store Location (Lititz, PA) | Aisle 04, Section D3 |
Package Length (in) | 2.20" |
Package Width (in) | 2.20" |
Package Height (in) | 5.60" |
Manufacturer Part Number | L6006C1018 |
Current Rating | Millivolt-0.25 A At 0.25-12 VDC, At Full Load-8 A at 120 VAC: 5.1 A at 240 VAC, At Locked Rotor-48 A at 120 VAC: 30.6 A at 240 VAC |
Bulb Size | 10 x 73 mm |
Action Type | SPDT |
Mounting Type | Horizontal/Vertical/Surface |
Temperature Rating | 18-93 deg C |
Dimensions | 2 in W x 5 5/8 in H x 2 3/4 in D |
Application | Circulator control and high limit or low limit |
