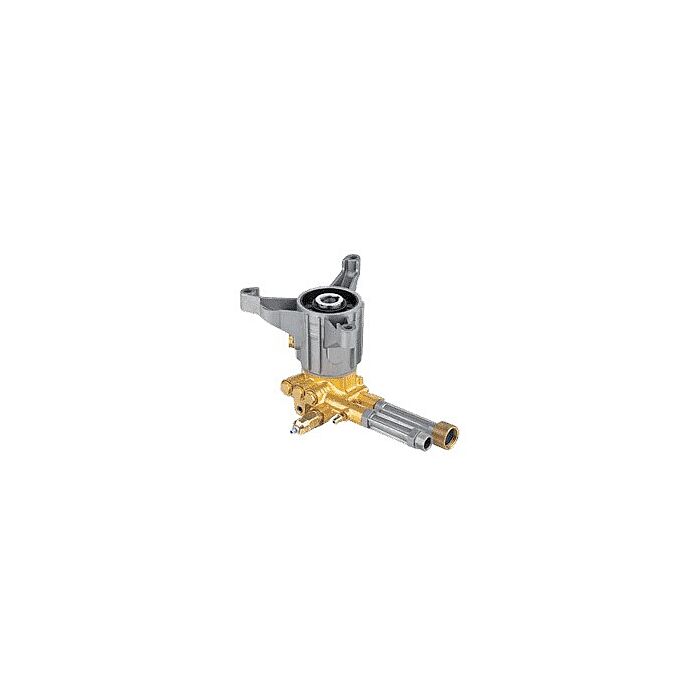

Annovi Reverberi offers the RMW25G28-EZ and RMW25G28-EZ-SX 2, 800 psi triplex plunger pumps in two different mounting configurations. This pump is for vertical gas engine driven units. Please reference the pictures below showing the mounting difference between the two models. Specifications: 2.5 gpm at 2, 800 psi and spins at 3, 400 rpm. This pump mounts directly on to the engine shaft by using a keyed hollow shaft connection system. The mounting flange provides a convenient connection to most 7/8 in diameter shaft vertical gas engines in 4 - 7 hp (reference the cc to hp chart) and fits most OEM carts. The pump includes a built-in pressure control valve, downstream chemical injection system, EZ start valve and thermal relief valve.

3-piston alternating volumetric pumps for use on cleaning units
Can be directly coupled to various types of motors
Two bearing systems, to support the pump shaft and pistons
Pump head in pressed brass
Intake valves fitted above the pistons for greater efficiency

Brand

Store Location (Lititz, PA)

Aisle 11, Section S1

Package Length (in)

7.80"

Package Width (in)

7.00"

Package Height (in)

6.60"

Manufacturer Part Number

RMW25G28-EZ

Inlet Size

3/4 in

Outlet Size

22 mm

Pressure Rating

2800 psi

Temperature Rating

140 deg F

Shaft Diameter

7/8 in
