Axial Horizontal Pump - 2.5 GPM, 3,000 PSI, 5.1 HP
SKU: RMV25G30D
$229.99
Features
Specifications
Downloads

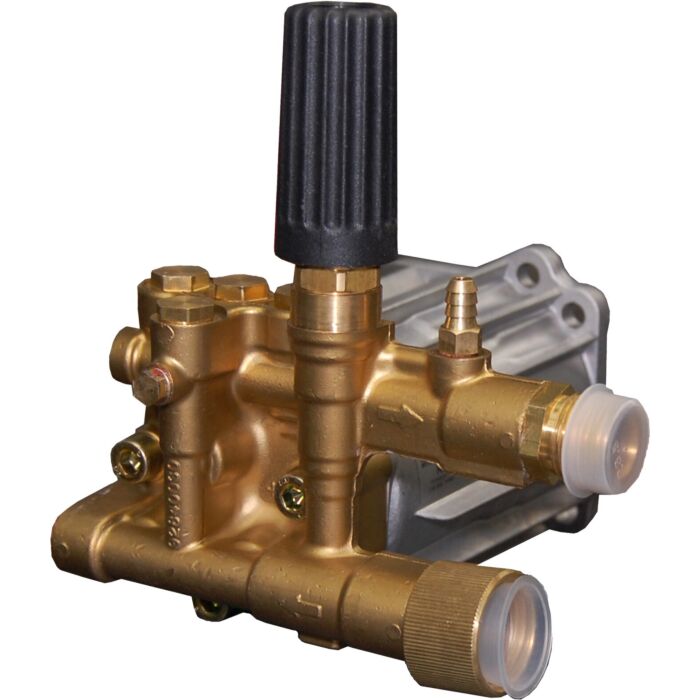

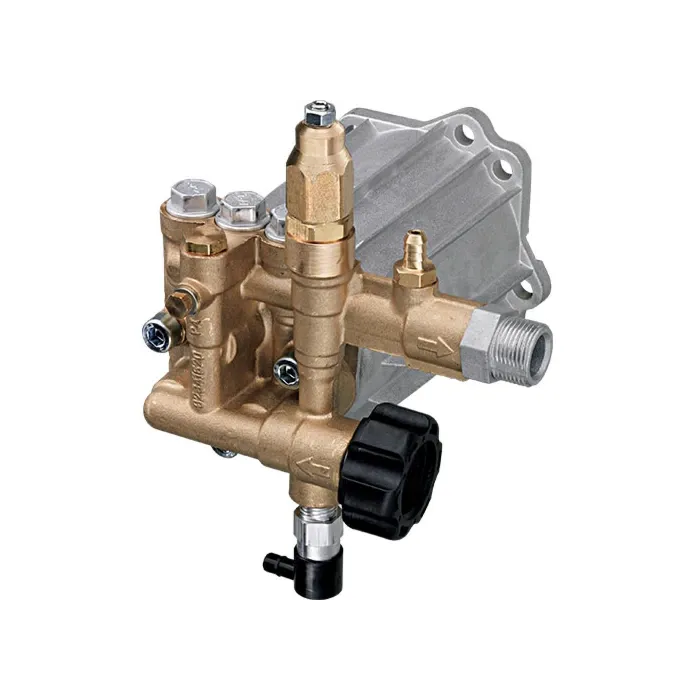

The Annovi Reverberi RMV25G30D-EZ, EZ version 3/4" hollow shaft triplex pump is ready for direct or pulley driving. This pump is manufactured with a brass pump head suitable for a wide range of conditions. The RMV25G30D-EZ can produce up to 3000 Max PSI, 2.5 Max GPM, and is designed to operate at 3400 RPM. Constructed with frictionless aluminum connecting rods and ceramic pistons, the RMV25G30D-EZ weighs in at 7.5 lbs and boasts a sleek compact design.
- 3-piston alternating volumetric pumps for use on cleaning units
- Can be directly coupled to various types of motors
- Two bearing systems, to support the pump shaft and pistons
- Pump head in pressed brass
- Intake valves fitted above the pistons for greater efficiency
| Brand | AR |
|---|---|
| Store Location (Lititz, PA) | Aisle 11, Section S1 |
| Package Length (in) | 6.80" |
| Package Width (in) | 4.80" |
| Package Height (in) | 3.80" |
| Manufacturer Part Number | RMV25G30D-EZ |
| Inlet Size | 3/4 in |
| Outlet Size | 22 mm |
| Pressure Rating | 3000 psi |
| Temperature Rating | 140 deg F |
| Shaft Diameter | 3/4 in |
| Speed Rating | 3,400 rpm |
