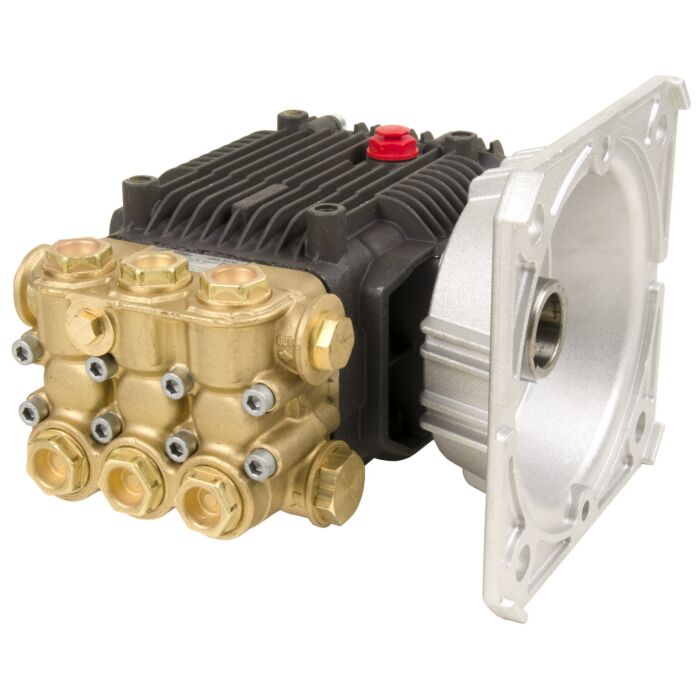

Annovi Reverberi AR XMA3G30E-F17 horizontal gas engine triplex plunger pump is rated up to 3.5 gpm at max 3000 psi at 1750 rpm using a 1/2 in F inlet and 3/8 in F discharge thread. E version 1-?" with a gas engine flange.Plunger Pumps are designed for a wide variety of high pressure washing applications. They are constructed with die-cast bodies and feature a brass head. Internal components include special thick solid ceramic plungers for long life and durability. Precision cast cooling fins are anodized for maximum heat dissipation. Oversized needle bearings on the drive side and ball on the non- drive side together with the precision supports assure positive alignment and centering in relation to the crankcase. Valve cages of special designed Ultra-Form provide positive seating and extended life. Ball bearings on both sides of solid shaft drive pumps. One-piece connecting rods are special alloy aluminum, oversized for strength and load disbursement. These pumps are designed for gearbox, belt drive or coupling drive systems driven by eletric motor or gasoline driven systems, gasoline engine driven systems.
Brand | AR |
---|---|
Store Location (Lititz, PA) | Aisle 11, Section S1 |
Package Length (in) | 8.00" |
Package Width (in) | 7.00" |
Package Height (in) | 6.80" |
Manufacturer Part Number | XMA3G30E-F17 |
Inlet Size | 1/2 in |
Outlet Size | 3/8 in |
Pressure Rating | 3000 psi |
Temperature Rating | 140 deg F |
Shaft Diameter | 1-1/8 in |
