Associated Fast Charger - 6/12V

SKU: AEUS20
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down
Lititz Your Store 1 in stock
Features chevron-down chevron-up

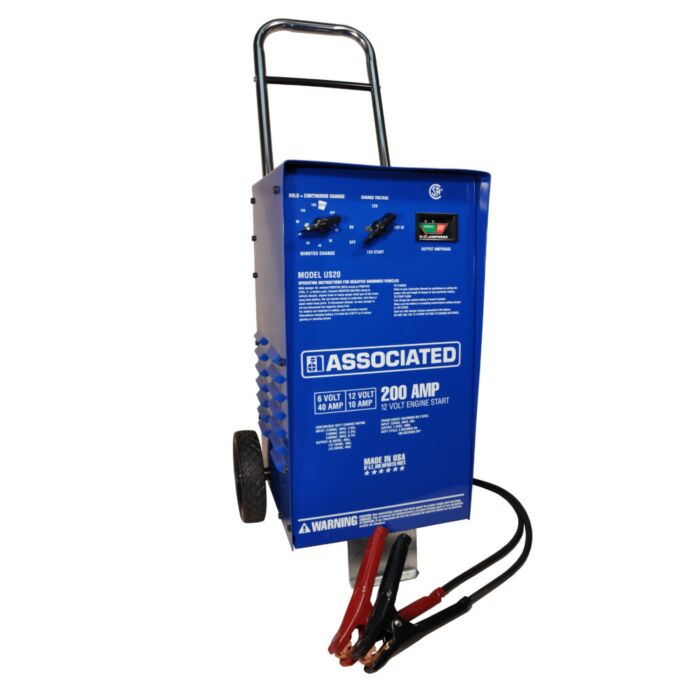

The Associated Fast Charger is a wheeled, manual-operation 6/12V battery charger and starter designed for Deep Cycle and Lead Acid batteries. It features a timer-based charge type and performs three main functions: boosting, charging, and maintaining. For performance, it offers a Cold Cranking Current of 200 A at both 12V and 6V, and a corresponding Boost Current of 200 A at 12V and 200 A at 6V. Charging current options include 10 A @ 12V, 40 A @ 12V, and 40 A @ 6V, while the Maintaining Current is 14.4 A @ 12V. Physically, it is equipped with a 6.5 ft cable with a 6.5 AWG wire gauge.
Specifications chevron-down chevron-up
UPC 099684004237
Store Location (Lititz, PA) Aisle 11, Section M2
Package Length (in) 14.50"
Package Width (in) 13.00"
Package Height (in) 24.00"
Cable Length 6.5 ft
Overall Height 24"
Overall Width 13"
Overall Depth 14-1/2"
Power Cord Length 6 ft
Item Battery Charger and Starter
For Use With Battery Type Deep Cycle, Lead Acid
Material Steel
Test Feature No
Portable Yes
Input Voltage 120V AC
Charger Style Wheeled
Charge Type Timer
For Battery Voltage 6 V DC, 12 V DC
Standards CSA
Charger Function Boosting, Charging, Maintaining
Application Battery Charging and Maintence
Includes Clamp Bar for Clamp Storage
CEC Compliant Non CEC Compliant
Automatic/Manual Manual
Maintaining Current @ Voltage 14.4 A @ 12V
Includes Test Feature No
Indoor or Outdoor Use Indoor/Outdoor
Cold Cranking Current @ Voltage 200 A @ 12V, 200 A @ 6V
Cable Wire Gauge 6.5 AWG
Charging Current @ Voltage 10 A @ 12V, 40 A @ 12V, 40 A @ 6V
Boost Current @ Voltage 200 A @ 12V, 200 A @ 6V
Connector Type Alligator Clip
