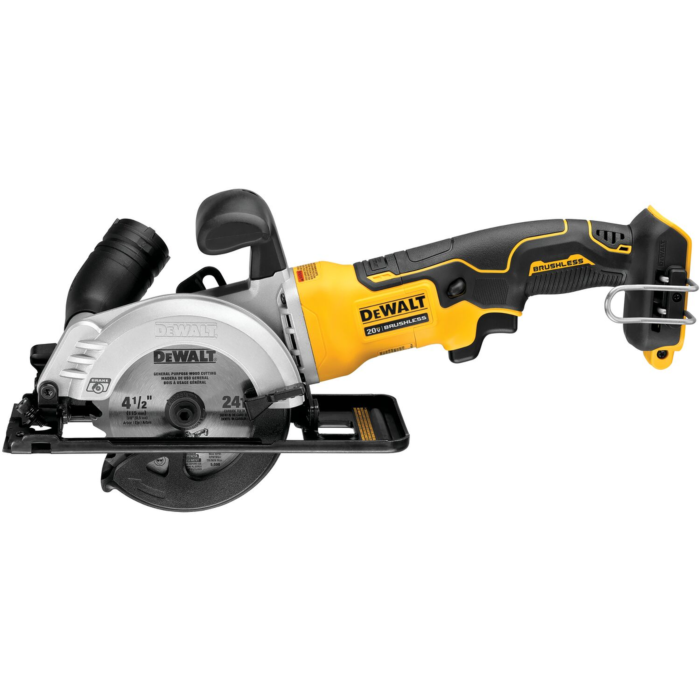

ATOMIC 20V MAX* Brushless Cordless 4-1/2 in. Circular Saw (Bare Tool)
SKU: DCS571B
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$199.99
Features
Specifications
This brushless 4-1/2 in. cordless circular saw (tool only) comes with one blade, rip fence, and dust port adaptor. The DCS571 features a bevel gear design allowing users to cut 2x material at 90 degrees and 1x material at 45 degrees. With convenient on-board blade key storage users can change blades with minimal hassle. Elongated handle optimizes reach for rip cutting OSB and plywood. Using a DCB205 battery, you can cut up to 369 linear feet of 3/4 in. OSB. Battery and charger sold separately.
- Brushless motor allows you to cut up to 369 linear feet of 3/4 in. OSB using DCB205 battery (sold separately)
- Removable auxiliary handle for increased control
- Hang hook for increased convenience
- On-board blade key storage for hassle free blade changes
- 1-1/2 in. finger trigger allows users to choke-up on tool if necessary for their application
- Bevel gear allows users to cut 2x material at 90 degrees with a 4-1/2 in. blade
- Electronic blade brake stops blade quickly for safety and productivity
- Bevel lever gives user the ability to bevel at 45 degrees to cut 1x dimensional lumber
- On-board dust port for dust control
| Brand | DEWALT |
|---|---|
| UPC | 885911592239 |
| Store Location (Lititz, PA) | Aisle 23, Section N3 |
| Package Length (in) | 17.60" |
| Package Width (in) | 5.13" |
| Package Height (in) | 5.13" |
| Manufacturer Part Number | DCS571B |
| Country of Origin | China |
| Length | 17.6 in |
| Width | 5.125 in |
| Height | 6.7 in |
| Weight | 6.75 lbs |
| Power Source | Electric |
| Cordless Vs. Corded | Cordless |
| Motor Type | Brushless |
| Voltage | 20 V V |
| Battery Included | No |
| Battery Type | 20V MAX Lithium Ion |
| Battery Test Summary | DEWALT_UN38.3 LITHIUM TEST SUMMARY_rev1,9.pdf |
| Charger Included | No |
| Battery Required | Yes |
| Number Of Batteries Required | 1 |
| Disclaimer | Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18. |
| Prop 65 Generic Warning | Yes |
| Warranty | 3LW1YS90D |
| Certifications Or Listings | CSA Listed | UL Listed |
| California Prop 65 Warning Label | http://images.salsify.com/image/upload/s--GK8MnSRs--/aq37mya9pqnhhhehoftu.pdf |
| Claims Needed | Yes |
| Adjustable Depth | Yes |
| Arbor Size | 0.375 |
| Bare Tool | Yes |
| Bevel Capacity | 45 |
| Blade Diameter | 4 1/2 in In. |
| Blade Location | Left |
| Blade Qty | 1 |
| Case Type | N/A (no case) |
| Dust Collection | No |
| Engine | Brushless |
| Housing Material | Plastic |
| Individual Vs. Set (Syndigo) | INDIVIDUAL |
| Integrated Laser Guide | No |
| Integrated Work Light | Yes |
| Kit | No |
| Maximum Cut Depth @ 45 Deg. | 1 in |
| Maximum Cut Depth @ 90 Deg. | 1-9/16 |
| Maximum Speed | 4500 RPM Rpm |
| Saw Drive Type | Sidewinder |
| Shoe Material | Metal |
| Product Finish | Yellow/Black/Silver |
