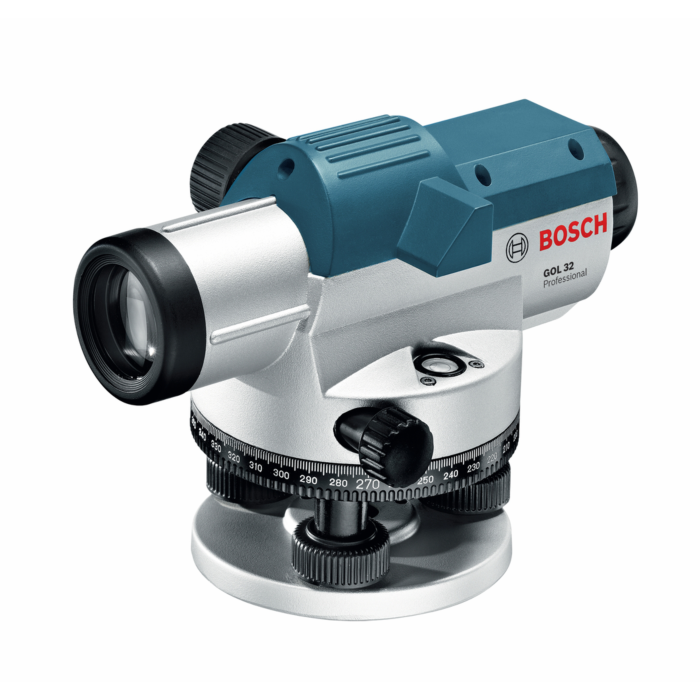

The Bosch GOL 32 automatic optical level features a self-leveling compensator, both horizontal/vertical cross hairs and Stadia lines, 32x magnification lens and large aperture for clear image. Range: 400 Ft., accuracy: up to 1/16 in. at 100 Ft., includes: hard case, lens cap, plumb bob, adjustment tools.
- Self leveling compensator with transport lock — protects pendulum against damage and loss of calibration
- Large aperture 32x-power lens — allows more light for a sharper image and excellent magnification
- Weather resistant design - IP54
- Solid metal base and three precision leveling screws - provides stability in all weather for precision leveling
- Both horizontal/vertical Crosshairs and Stadia lines - measures level and alignment and estimates distance
- Top mount quick sight — for quick sighting of leveling rod
- Circular bubble vial with 90-degree prism — for easy, fast set-up
Brand | Bosch |
---|---|
UPC | 000346452402 |
Store Location (Lititz, PA) | Aisle 25, Section I5 |
Package Length (in) | 7.75" |
Package Width (in) | 11.75" |
Package Height (in) | 8.25" |
Manufacturer Part Number | GOL 32 |
Accuracy | 1/16" at 100 ft |
Case Included | Yes |
Color / Finish | Blue, Silver |
Country of Origin | China |
Depth (in) | 8.3 |
GTIN | 00000346452402 |
Height (in) | 8.3 |
Legs Included | No |
Length (in) | 5.6 |
Level Accuracy | 1/16" at 100 ft |
Level Type | Cross Check |
Material | Durable plastic with overmold in key impact areas; aluminum |
Number of Vials | 1 |
Number of Vials Measuring Level | 1 |
Weight | 3.7 lb |
Weight (lbs) | 3.7 lb |
Width (in) | 5.3 |
