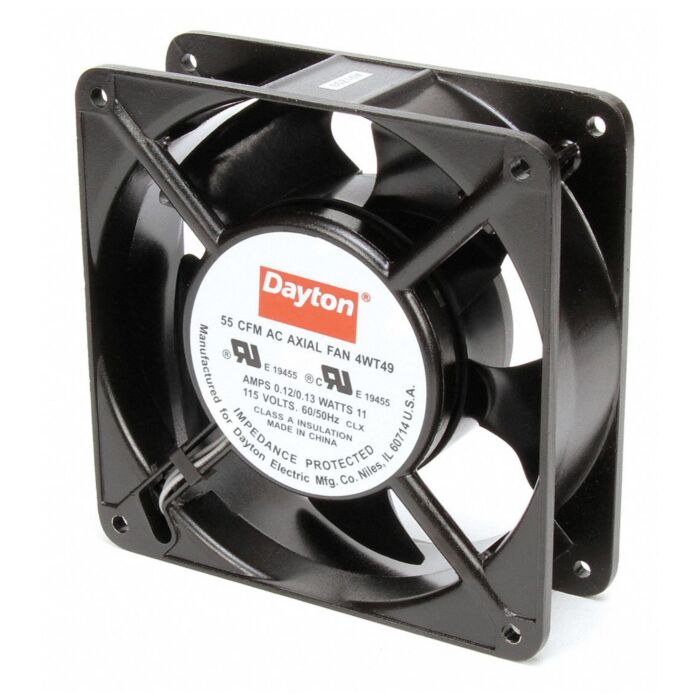

This Standard Square Axial Fan is designed for the efficient cooling of equipment within an enclosure in dry locations. Its standard square housing offers flexible installation, as it can be mounted over a round cutout or fitted into a square one. Powered by a Shaded Pole Motor with Class A insulation and impedance thermal protection, the fan delivers an airflow of 70 CFM at 2150 RPM (at 60 Hz) and 76 CFM at 1750 RPM (at 50 Hz). It operates quietly with a sound level of 36 dBA (at 60 Hz) and is rated for 115V AC, drawing 0.12/0.13 Amps and 11 Watts. Featuring a durable Sleeve Bearing and a horizontal mounting position, the fan has an IP20 rating and can operate in a maximum ambient temperature of 158°F.
| Brand | DAYTON |
|---|---|
| Store Location (Lititz, PA) | Aisle 05, Section C1 |
| Package Length (in) | 1.75" |
| Package Width (in) | 5.00" |
| Package Height (in) | 5.00" |
| Voltage Rating | 115 VAC |
| Current Rating | 0.12/0.13 A |
| Power Rating | 11/11 W |
| Frequency Rating | 50-60 Hz |
| Speed | 2150/1750 rpm |
| Blade Material | Polybutylene Terephthalate |
| Motor Type | Shaded Pole |
| Sound Level | 36/33.5 db |
| Mounting Type | Horizontal |
| Temperature Rating | 158 deg F |
| Bearing Type | Sleeve |
| Mounting Eye OC | 4-1/8" |
| CFM Rating | 55/72 cfm |
| Insulation Class | Class A |
| Material | Cast Aluminum |
| Color | Black |
| Dimensions | 4-11/16" W x 4-11/16" H x 1-1/2" D |
| Application | Equipment Cooling |
