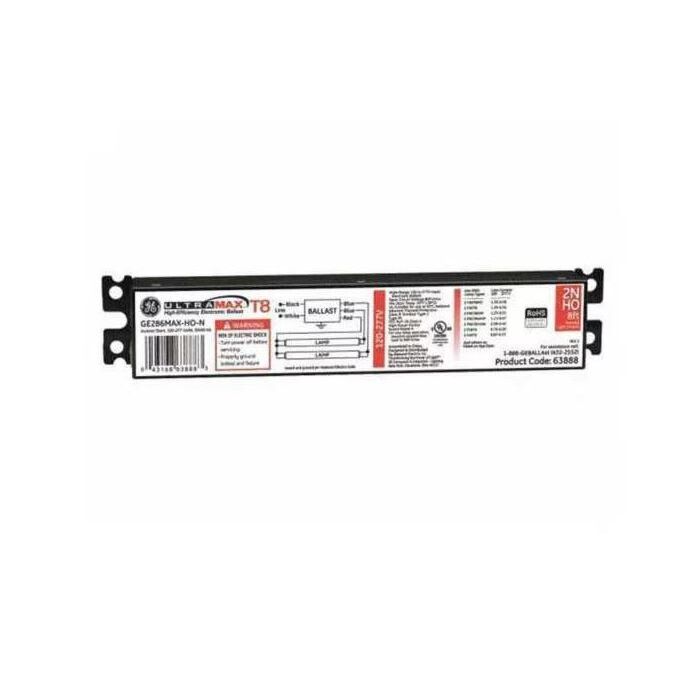

145 W 49 W 120-277 VAC Electronic Ballast
SKU: GE286MAXHON
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$44.99
Features
Specifications
Instant-start electronic fluorescent ballasts turn on lights immediately and are used in fluorescent lighting fixtures in warehouses and other areas where lights are left on for long periods of time. They provide high voltage at start-up and should not be used with occupancy sensors or other lighting controls that turn lights on or off frequently.
- Standards ANSI C62.41-1991; ANSI C82.11-Cons 2002; FCC Part 18-A; UL Listed
| UPC | 043168638883 |
|---|---|
| Store Location (Lititz, PA) | Aisle 10, Section D2 |
| Package Length (in) | 10.40" |
| Package Width (in) | 3.80" |
| Package Height (in) | 1.80" |
| Lamp Wattage | 145 W |
| Input Wattage | 49 W |
| Voltage Rating | 120-277 VAC |
| Current Rating | 1.1 A |
| Start Type | Instant |
| Minimum Starting Temperature | 22 deg F |
| Power Factor | >0.93 |
| Dimmable/Non-Dimmable | Non-Dimmable |
| Number of Lamps | 1/2 |
| Thermal Protection | Class P |
| Lamp Base | T8 |
| Ballast Factor | 0.82 |
