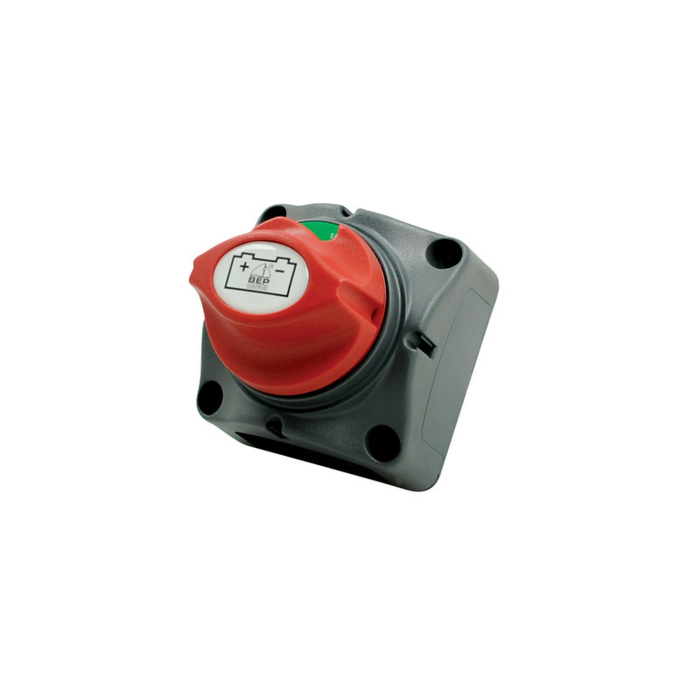

Battery Switch 48V 275A
SKU: DC5413
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$39.99
Features
Specifications
Each battery switch is an ignition protected on-off battery switch that can be surface-mounted or recessed-mounted for custom panels. Both switches offer a patented contour lock system, allowing it to be locked together with a similar product.
- Medium-duty ignition-protected On/Off battery switch that can be surface-mounted and or recessed-mounted for custom panels.
- Each switch offers a patented contour lock system allowing it to be locked together with similar product and 4 removable access panels allowing for battery cable to be installed from any direction.
- The medium-duty switch features 3/8" tin plated battery studs and nuts and a removable security key (to remove key, turn switch 45° counter-clockwise from off).
- Rated up to 48V DC at 275A continuous, 455A intermittent, 1250A cranking.
| UPC | 870216000015 |
|---|---|
| Store Location (Lititz, PA) | Aisle 14, Section N1 |
| Package Length (in) | 2.75" |
| Package Width (in) | 2.75" |
| Package Height (in) | 3.00" |
| Product Group | Rotary |
| Product Type | Battery Disconnect |
| Actuation () indicates momentary | ON-OFF |
| Actuation Circuit | SPST |
| Terminal Type | 0.375" Stud |
| Electrical Rating | 455A, 12-24V DC |
| Illumination | None |
| Type | Lockable Contoured Round Knob |
| Actuator Material | Plastic |
| Mounting Type | Surface or Recessed |
