SealMaster

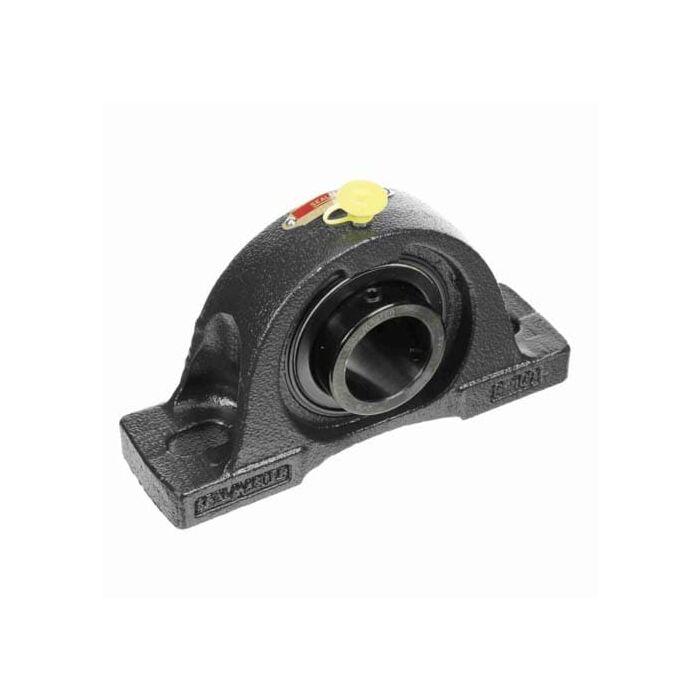

1-1/2 in 4.8750 to 5.8750 in 1-15/16 in Standard Duty Pillow Block Ball Bearing
SKU: SMNP24
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$188.99
Features
Specifications
Pillow Block Ball Bearing, Standard Duty, 1-1/2 in Bore Dia, 4.8750 to 5.8750 in Bolt Center-to-Center Length, 1-15/16 in Base to Bore Centerline, 7-1/4 in Overall Length, 3.9375 in Overall Height, 1.9375 in Overall Width, 2-Bolt Mount, Round Bore, 2-1/8 in Base Width, Set Screw, Felt Seal, Non-Expansion Expansion, 4467 lb Static, 7340 lb Dynamic, Cast Iron, Uncoated
| Brand | SealMaster |
|---|---|
| UPC | 662461001653 |
| Store Location (Lititz, PA) | Aisle 09, Section W4 |
| Package Length (in) | 7.75" |
| Package Width (in) | 4.75" |
| Package Height (in) | 2.25" |
| Manufacturer Part Number | NP-24 |
| Type | Standard Duty |
| Bore Diameter | 1-1/2 in |
| Bolt Center-to-Center Length | 4.8750 to 5.8750 in |
| Base to Bore Centerline | 1-15/16 in |
| Overall Length | 7-1/4 in |
| Overall Height | 3.9375 in |
| Overall Width | 1.9375 in |
| Mounting Type | 2-Bolt |
| Bore Type | Round |
| Base Width | 2-1/8 in |
| Locking Device | Set Screw |
| Seal Type | Felt |
| Expansion Type | Non-Expansion |
| Load Capacity | 4467 lb Static, 7340 lb Dynamic |
| Material | Cast Iron |
| Finish | Uncoated |
