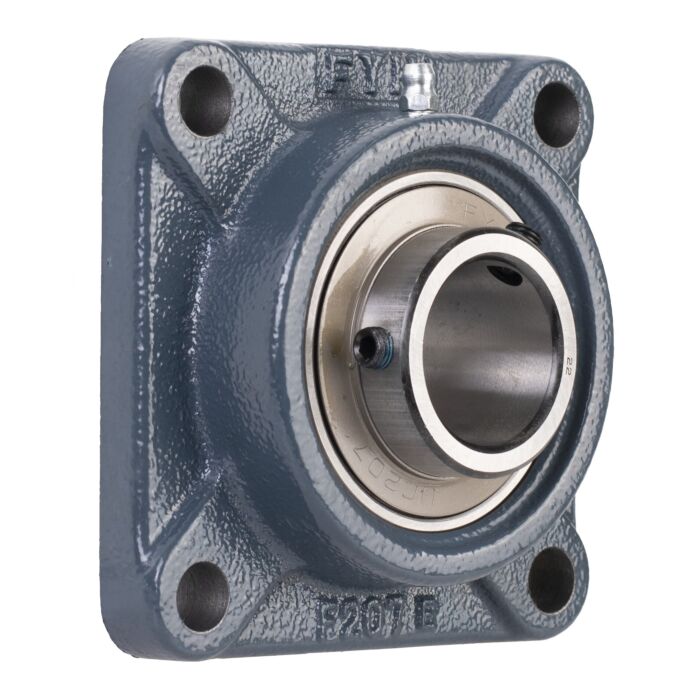

Premium 4 Bolt Flange Bearing, 1-1/4" Set Screw Lock, Extended Race UCF20720
SKU: UCF20720FYH
$37.99
Features
Specifications
Flange Mount Ball Bearing Unit with Set Screw, 1-1/4 in Bore Dia, 3-5/8 in Bolt Center-to-Center Length, 4-19/32 in Overall Length, 4-Bolt Flange Mount, Cast Iron Housing, 25.7 kN Dynamic, 15.4 kN Static, Set Screw
| Brand | FYH |
|---|---|
| UPC | 011200000769 |
| Store Location (Lititz, PA) | Aisle 09, Section X1 |
| Package Length (in) | 4.60" |
| Package Width (in) | 2.00" |
| Package Height (in) | 4.80" |
| Manufacturer Part Number | UCF20720EG5 |
| Bearing Type | Premium 4 Bolt Flange |
| Features | Set Screw Lock, Extended Race |
| Length | 3-5/8" Bolt Spacing |
| Height | 1-3/4" |
| 206 Series | 207 Series |
| Inner Diameter | 1-1/4" |
| Overall Length | 4-19/32" |
