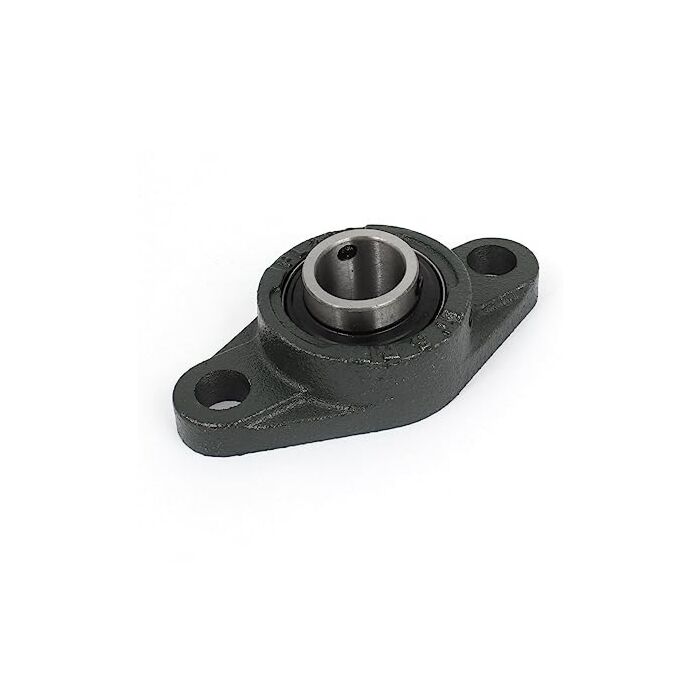

Standard 2 Bolt Flange Bearing, 25 mm Set Screw Lock, Extended Race UCFL20525
SKU: UCFL20525MM
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$24.99
Features
Specifications
Flange Mount Ball Bearing with Set Screw, 25 mm Bore Dia, 99 mm Bolt Center-to-Center Length, 2-Hole Flange Mounting, Cast Iron Bearing, 14 kN Dynamic, 7.85 kN Static
| Brand | FYH |
|---|---|
| Store Location (Lititz, PA) | Aisle 09, Section X1 |
| Package Length (in) | 5.20" |
| Package Width (in) | 2.40" |
| Package Height (in) | 1.60" |
| Manufacturer Part Number | UCFL20525E |
| Bearing Type | Standard 2 Bolt Flange |
| Features | Set Screw Lock, Extended Race |
| Length | 3-57/64" Bolt Spacing |
| Height | 1-13/32" |
| 205 Series | 205 Series |
| Overall Length | 5-1/8" |
| Inner Diameter | 25 mm |
