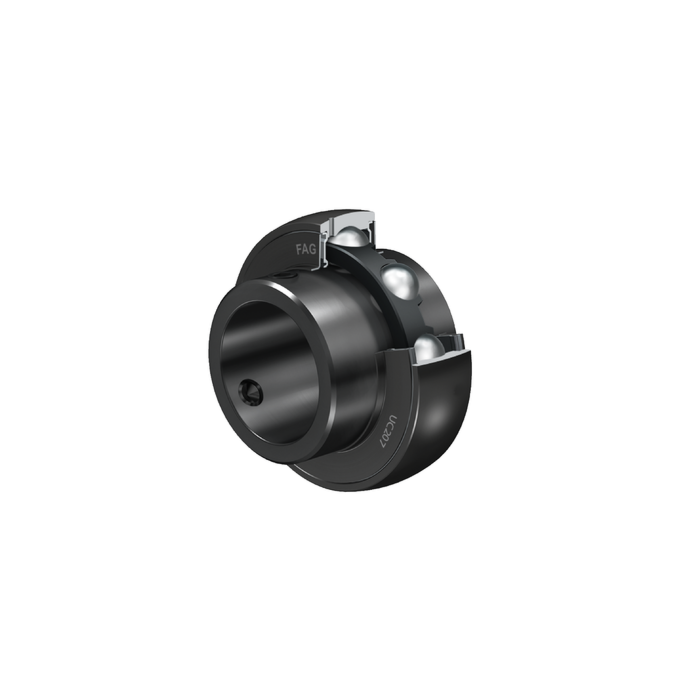

1-3/4 in 85 mm 49.2 mm Greasable Insert Bearing
SKU: UC20928KML
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$29.35
Features
Specifications
Insert Bearing, Greasable, Series: UC, 1-3/4 in Bore Dia, 85 mm Outside Dia, 1 Rows, 49.2 mm Width, 34500 N Dynamic, 20400 N Static, Greasable
- static angular misalignments of the shaft must be compensated, which are caused by mounting inaccuracies and tolerances in the adjacent construction
- very good seals are required in environmental conditions such as dust, contamination, moisture, stone impacts and shocks
- A cylindrical housing bore is already present
- The outer ring of the bearings is to be located by means of easy-to-fit snap rings
- Vibrations and shocks must be supported
- Damping of running noise is required
| Brand | KML |
|---|---|
| Store Location (Lititz, PA) | Aisle 09, Section W1 |
| Package Length (in) | 3.40" |
| Package Width (in) | 3.40" |
| Package Height (in) | 2.00" |
| Manufacturer Part Number | UC209-28 |
| Type | Greasable |
| Series | UC |
| Bore Diameter | 1-3/4 in |
| Outside Diameter | 85 mm |
| Number of Rows | 1 |
| Width | 49.2 mm |
| Load Capacity | 34500 N Dynamic, 20400 N Static |
| Locking Device | Greasable |
