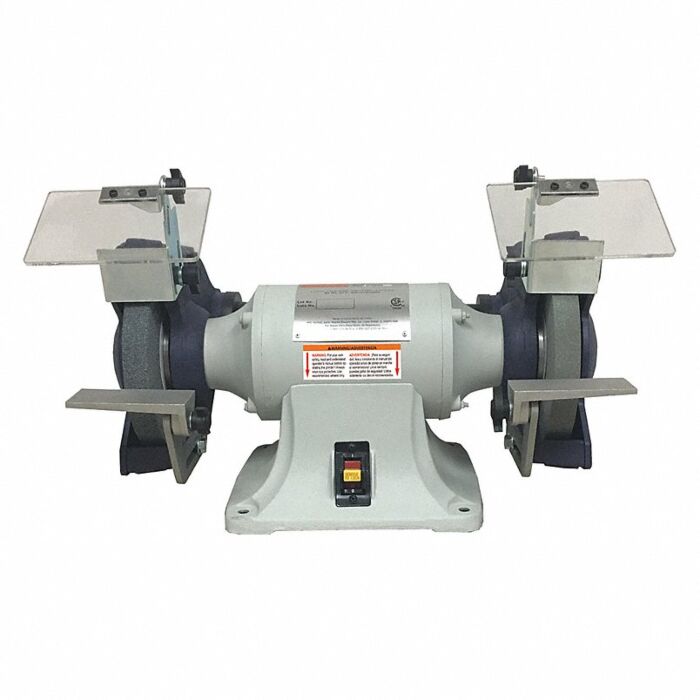

Dayton 8 in 1 in 36 and 60 Bench Grinder

SKU: 2LKR9
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down
Lititz Your Store 2 in stock
Features chevron-down chevron-up
Dayton bench grinders are equipped with high quality motors for long duty cycles and heavy duty use on carbon metals and alloys. Dayton 2LKR9 bench grinder provides approximately 4 to 7 times longer duty cycles and delivers 8 times lesser speed than most conventional bench grinders. This bench grinder features sealed bearings and dynamically balanced rotors to minimise vibration for smooth running. This grinder provides extended wheel to wheel clearance to allow long items to be grounded easily. It has large, adjustable tools for angular grinding and secured & efficient tilt. Dayton 2LKR9 bench grinder also features spark guards and adjustable safety eye shields that are attached with hurricane bolts for added safety. This Dayton bench grinder comes equipped with ball bearings for low rotational friction and delivers a maximum wheel speed of 3450 RPM.
  • Bench grinders are stationary tools with a belt or an abrasive wheel that rotates at high speeds to smoothen or shape a workpiece
  • They are mounted to a workbench and the operator holds the workpiece with both hands against the spinning wheel / belt to shape or smoothen it
  • These Dayton bench grinders are compact in design and can be stored easily when not in use
Specifications chevron-down chevron-up
Store Location (Lititz, PA) Aisle 31, Section N1
Package Length (in) 12.00"
Package Width (in) 12.20"
Package Height (in) 12.20"
Tool/Kit Tool
Wheel Diameter 8 in
Wheel Thickness 1 in
Grit Size 36 and 60
Speed Setting 1
Arbor Size 5/8 in
Dust Management Included Yes
Bearing Type Ball
Cord Length 6 ft
Current 7 A/3.5 A
Dust Collection Port Size 2-1/2 in
Duty Heavy Duty
Electrical Connection Cord with Plug
Electrical Protection Grounded
Frequency Rating 60 Hz
Horsepower 3/4 hp
Housing Material Aluminum, Steel
Maximum Disc Speed 3450 rpm
Maximum Wheel Speed 3450 rpm
Minimum Wheel Speed 3450 rpm
Number of Pieces 1
Overall Height 15 in
Overall Length 12 in
Overall Width 20 in
Phase 1
Plug Type 3-Prong
Spindle Thread Size M16 x 1.5
Switch Type Locking Rocker
Voltage Rating 120 V/240 V
Wheel Distance 15-1/2 in
