Blade Fuse Panel
SKU: 156000620
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$19.99
Features
Specifications
Downloads

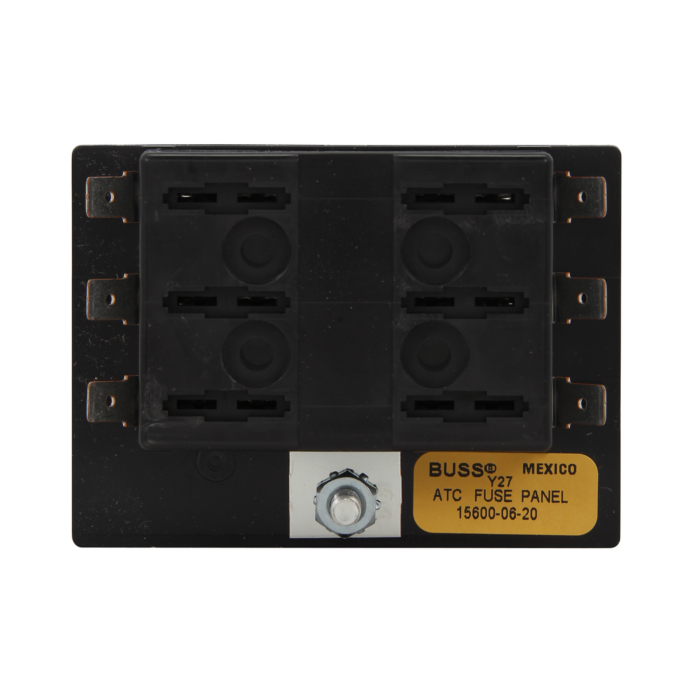

Eaton Bussmann series 15600 fuse holder, Blade fuse panel,
Single stud, short base, number of fuse positions 6, wire size
16 to 12 AWG, temperature rating -20 to 150 Deg F, 25 A, 32V,
Surface mount, black thermoplastic
| Brand | Bussmann |
|---|---|
| UPC | 051712813006 |
| Store Location (Lititz, PA) | Aisle 14, Section N1 |
| Package Length (in) | 3.40" |
| Package Width (in) | 2.40" |
| Package Height (in) | 1.00" |
| Manufacturer Part Number | BP/15600-06-20 |
| Height | .83 IN |
| Length | 3.37 IN |
| Width | 2.47 IN |
| Weight | .11 LB |
| Type | Blade fuse panel |
| Amperage Rating | 30A |
| Voltage Rating | 32V |
| Base | Short |
| Material | Thermoplastic |
| Mounting | Surface |
| Operating Temperature | -20° to 150°F |
| Wire Size | #16-12 AWG |
| Color | Black |
