Features
Specifications

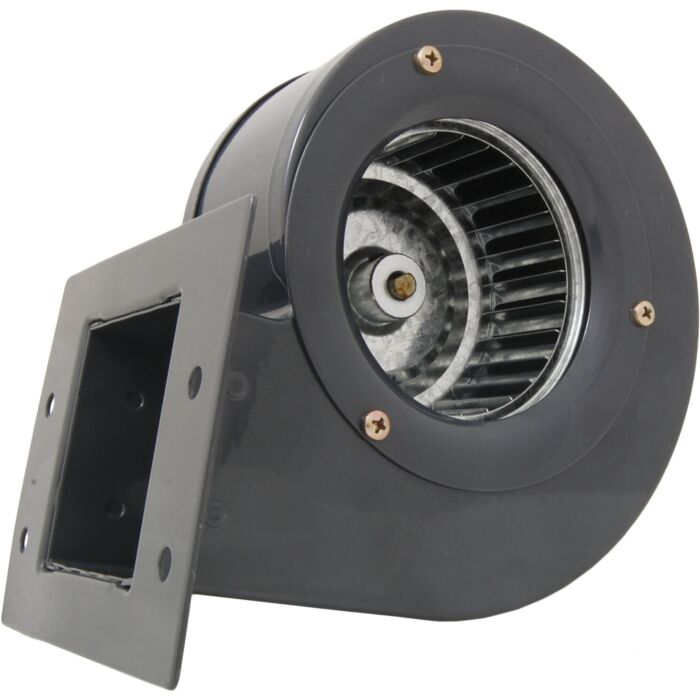

Direct-drive blowers with drive feature a blower wheel that is mounted directly onto the motor shaft which reduces friction and improves efficiency compared to a belt-drive fan. Direct-drive fans have fewer moving parts and typically require less maintenance than belt-drive fans.
- CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower
UPC | 815585024538 |
---|---|
Store Location (Lititz, PA) | Aisle 05, Section C1 |
Package Length (in) | 6.60" |
Package Width (in) | 5.40" |
Package Height (in) | 7.00" |
Voltage Rating | 115 VAC |
HP Rating | 1/30 hp |
Frequency Rating | 50-60 Hz |
Phase | 1 ph |
Wheel Type | Forward-Curved |
Wheel Diameter | 3-3/4 in |
Wheel Width | 1-7/8 in |
Wheel Material | Steel |
Temperature Rating | 104 deg F |
Motor Type | Permanent Split Capacitor |
Speed | 2880 rpm |
Rotation Type | CW |
Bearing Type | Ball |
Shaft Diameter | 8 mm |
Mounting Type | Multi-Position |
Inlet Size | 3-1/4 in |
Enclosure Type | Open |
Housing Material | Steel |
Housing Finish | Enamel |
Housing Color | Gray |
Overall Width | 5-5/8 in |
Overall Depth | 6-1/2 in |
