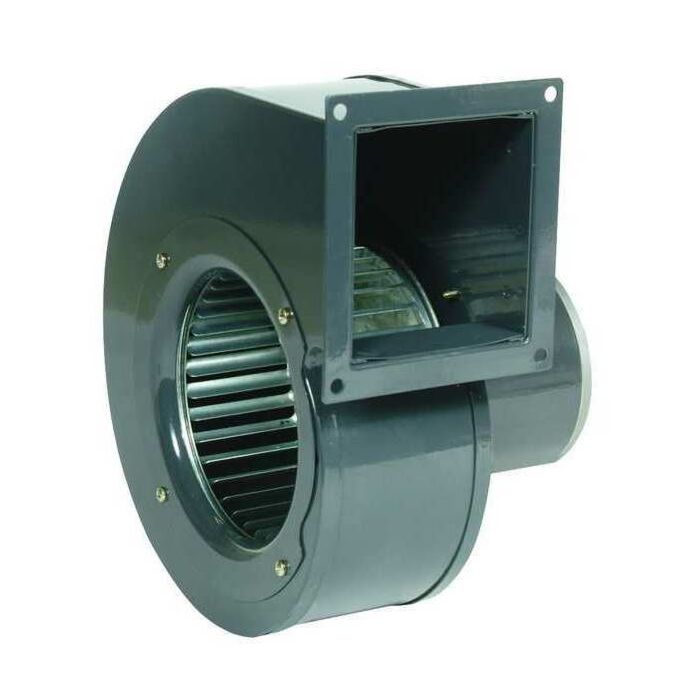

Direct-drive blowers feature a blower wheel mounted directly onto the motor shaft, which reduces friction and improves efficiency compared to belt-drive fans. These fans have fewer moving parts and typically require less maintenance. This is a 115 VAC, 1.35 A, 1/12 hp rectangular blower.
| Brand | DAYTON |
|---|---|
| UPC | 786674008688 |
| Store Location (Lititz, PA) | Aisle 05, Section D2 |
| Package Length (in) | 11.40" |
| Package Width (in) | 9.00" |
| Package Height (in) | 7.80" |
| Voltage Rating | 115 VAC |
| Current Rating | 1.35 A |
| HP Rating | 1/12 hp |
| Phase | 1 ph |
| Wheel Type | Forward-Curved |
| Wheel Diameter | 6-1/8 in |
| Wheel Width | 1-7/8 in |
| Wheel Material | Steel |
| Temperature Rating | 104 deg F |
| Motor Type | Permanent Split Capacitor |
| Speed | 1650 rpm |
| Rotation Type | CW |
| Bearing Type | Ball |
| Shaft Diameter | 12 mm |
| Mounting Type | Multi-Position |
| Inlet Size | 5-1/4 in |
| Enclosure Type | Open |
| Housing Material | Steel |
| Housing Finish | Enamel |
| Housing Color | Gray |
| Overall Width | 7-5/8 in |
