Features
Specifications

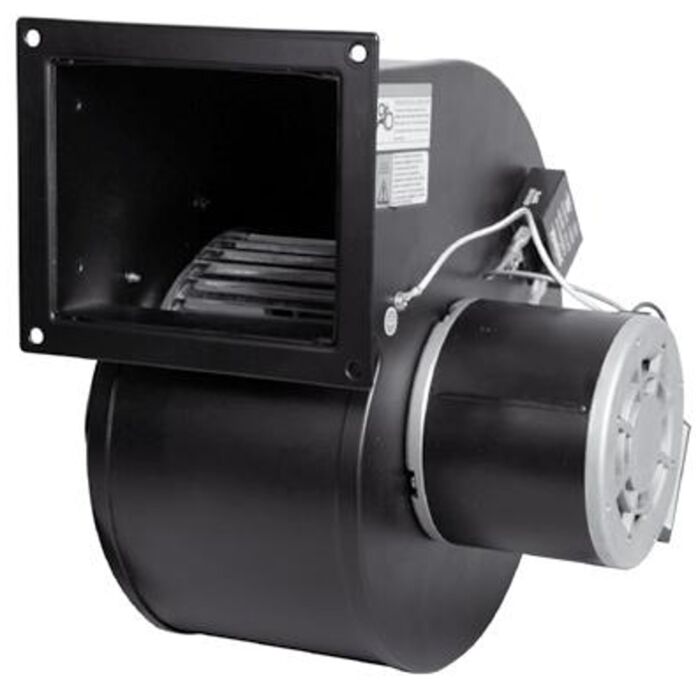

This replacement blower operates at 115 V, 2.2 A, and 1/6 hp, delivering 495 cfm. It's a single-phase unit with a PSC motor, featuring CW rotation, ball bearings, a flange mount, and an open design. The blower has a 3.3-inch frame diameter, an overall length of 13 inches, an overall width of 12.75 inches, and an overall depth of 12 inches.
| Brand | PEMS |
|---|---|
| UPC | 810139480044 |
| Store Location (Lititz, PA) | Aisle 05, Section D2 |
| Package Length (in) | 12.80" |
| Package Width (in) | 12.40" |
| Package Height (in) | 11.80" |
| Manufacturer Part Number | PTDT2 |
| Voltage Rating | 115 V |
| Current Rating | 2.2 A |
| HP Rating | 1/6 hp |
| Phase | 1 ph |
| Flow Rate | 495 cfm |
| Motor Type | PSC |
| Rotation Type | CW |
| Bearing Type | Ball |
| Mounting Type | Flange |
| Enclosure Type | Open |
| Diameter | 3.3 in Frame |
| Overall Length | 13 in |
| Overall Width | 12.75 in |
| Overall Depth | 12 in |
