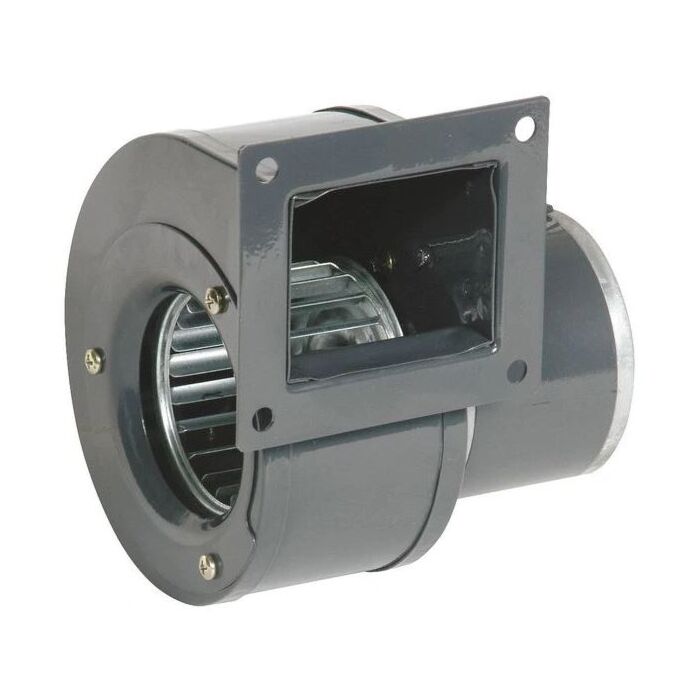

This direct drive blower features a wheel mounted directly onto the motor shaft, which reduces friction and improves efficiency compared to belt-drive fans. These fans have fewer moving parts, typically requiring less maintenance. This is a 115 VAC, 0.31 A, 1/100 hp rectangular blower.
| Brand | DAYTON |
|---|---|
| UPC | 815585027102 |
| Store Location (Lititz, PA) | Aisle 05, Section D3 |
| Package Length (in) | 10.00" |
| Package Width (in) | 7.00" |
| Package Height (in) | 6.00" |
| Voltage Rating | 115 VAC |
| Current Rating | 0.31 A |
| HP Rating | 1/100 hp |
| Frequency Rating | 50-60 Hz |
| Phase | 1 ph |
| Wheel Type | Forward-Curved |
| Wheel Diameter | 3 in |
| Wheel Width | 1-7/8 in |
| Wheel Material | Steel |
| Temperature Rating | 104 deg F |
| Motor Type | Permanent Split Capacitor |
| Speed | 3010 rpm |
| Rotation Type | CW |
| Bearing Type | Ball |
| Shaft Diameter | 8 mm |
| Mounting Type | Multi-Position |
| Inlet Size | 2-5/8 in |
| Enclosure Type | Open |
| Housing Material | Steel |
| Housing Finish | Enamel |
| Housing Color | Gray |
| Overall Width | 5-3/8 in |
| Overall Depth | 5-3/8 in |
