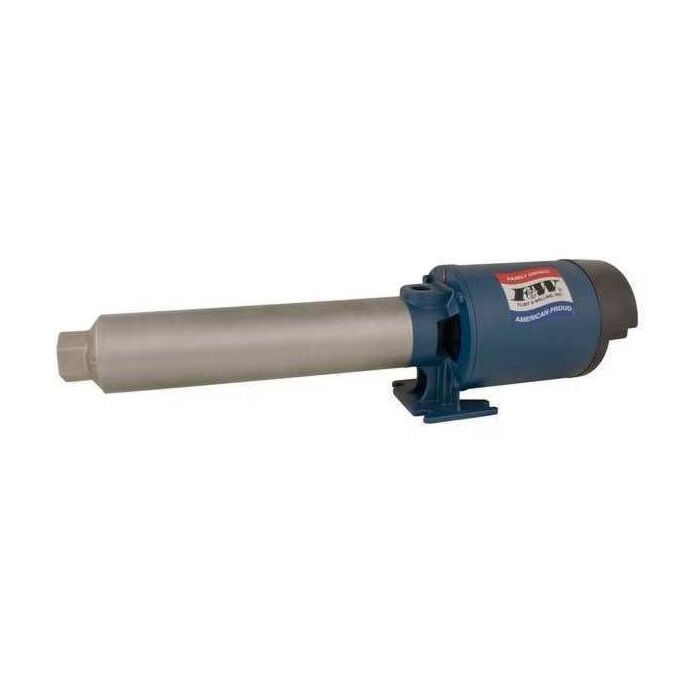

120/240 V 18/9 A 60 Hz Multi-Stage Booster Pump
SKU: 22W715
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$849.99
Features
Specifications
Horizontal booster pumps with a motor between 3/4 and 1 hp achieve higher pressure and flow rates than pumps with a lower HP.
- CSAus Certified
| UPC | 054757005528 |
|---|---|
| Store Location (Lititz, PA) | Aisle 08, Section H6 |
| Package Length (in) | 27.40" |
| Package Width (in) | 6.80" |
| Package Height (in) | 6.60" |
| Type | Multi-Stage |
| Voltage Rating | 120/240 V |
| Current Rating | 18/9 A |
| Frequency Rating | 60 Hz |
| HP Rating | 1 hp |
| Phase | 1 ph |
| Inlet Connection Size | 3/4 in FNPT |
| Outlet Connection Size | 3/4 in FNPT |
| Flow Rate | 6.3 gpm at 160 psi |
| Pressure Rating | 185 psi Maximum |
| Motor Type | Capacitor-Start |
| Motor Speed Rating | 3450 rpm |
| Impeller Type | Closed |
| Case Pressure | 300 psi |
| Temperature Rating | 65-140 deg F |
| Bearing Type | Ball |
| Frame | NEMA 56J |
| Mounting Type | Horizontal/Vertical with Inlet Down |
| Housing Material | Cast Iron |
| Overall Length | 27.25 in |
| Overall Width | 6.5 in |
| Overall Height | 9 in |
