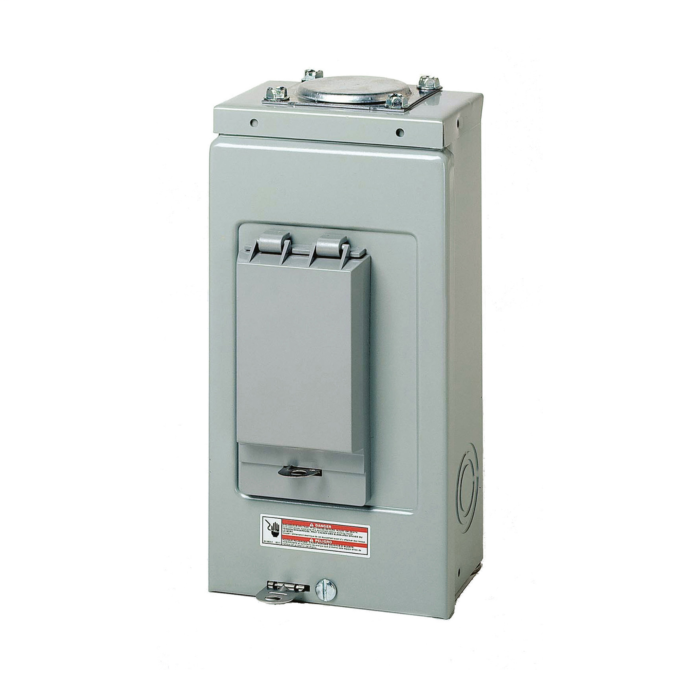

BR style 1-inch loadcenter
- Larger knockout provides easier installation and time savings
Brand | Cutler-Hammer |
---|---|
UPC | 786676001618 |
Store Location (Lititz, PA) | Aisle 09, Section A1 |
Package Length (in) | 4.80" |
Package Width (in) | 4.60" |
Package Height (in) | 11.20" |
Manufacturer Part Number | BR24L70RP |
Height | 23 IN |
Length | 3.88 IN |
Width | 14.31 IN |
Special Features | Current design |
Type | Main lug |
Amperage Rating | 70A |
Box Size | 5r |
Bus Material | Aluminum |
Cover | Cover included |
Enclosure | NEMA 3R |
Enclosure Material | Metallic |
Interrupt Rating | 10 kAIC |
Main Circuit Breaker | BR |
Number Of Circuits | 4 |
Number Of Poles | Four-pole |
Number Of Spaces | 2 |
Number Of Wires | Three-wire |
Phase | Single-phase |
Used With | Type BR 1-inch breakers |
Voltage Rating | 120/240V |
Wire Size | #8-2 AWG Cu/Al |
Notes | Ground bar kit priced separately. Suitable for use as service equipment when no more than 2 service disconnecting mains are provided or when not used as lighting & appliance panelboard |
