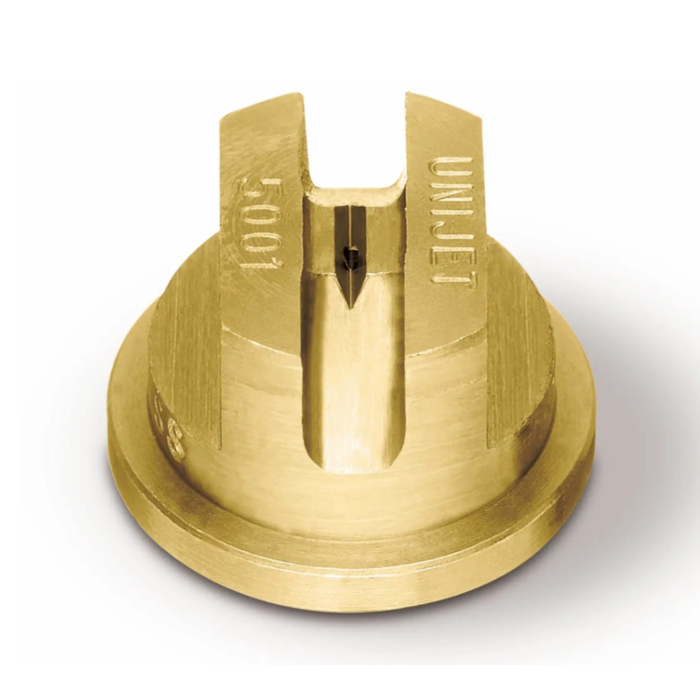

Brass Spray Tip - Size 0.1
SKU: TP6501
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$5.29
Features
Specifications
As the liquid exits through the sharp V shape cut of the orifice, it forms into a flat spray pattern. The distribution is tapered from the center of the spray.
- Save on nozzle replacement costs – bodies can be reused, only spray tips are replaced
- Design allows easy tip change out in place –remove tips by unscrewing the retainer cap
- Recessed orifices to protect against damage
- Flat fan type, tapered edge spray pattern
- Spray angles from 0° to 110°
- Uniform spray distribution with flow rates from .003 to 25 gpm
- Operating pressures up to 500 psi
| Brand | TeeJet |
|---|---|
| Store Location (Lititz, PA) | Aisle 08, Section S5 |
| Package Length (in) | 0.20" |
| Package Width (in) | 0.75" |
| Package Height (in) | 0.20" |
| Manufacturer Part Number | TP6501 |
| Inlet Connection Type | Quick-connect |
| Liquid Flow Rate Range | 0.05 - 0.35 gpm |
| Liquid Pressure Range | 10 - 500 psi |
| Material Composition | Brass |
| Spray Pattern | Flat Spray |
| Product Type | Tip |
