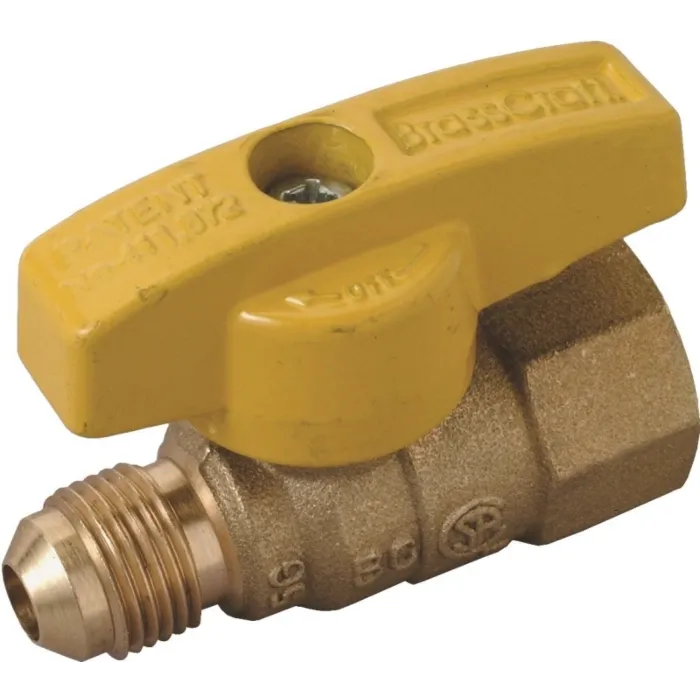

This Brass Gas Ball Valve (3/8 in. Flared x 1/2 in. FIP) is specifically recommended for secure and reliable appliance connections. It features a heavy-duty forged brass body that eliminates the risk of pinhole leaks often found in cast products. Built for durability, the valve is corrosion-resistant and equipped with a yellow painted aluminum handle for easy identification and operation. This valve is CSA design certified, meets ANSI Z21-15 standards, and is engineered with threads that conform to all applicable industry specifications.
- Heavy-duty forged brass body eliminates pinhole leaks commonly associated with cast products
| Brand | BrassCraft |
|---|---|
| UPC | 777808005406 |
| Store Location (Lititz, PA) | Aisle 11, Section H1 |
| Package Length (in) | 1.40" |
| Package Width (in) | 1.40" |
| Package Height (in) | 1.40" |
| Body Material | Brass |
| Connection Size | 3/8" x 1/2" |
| Connection Type | Flared x FIP |
| Dimensions | 6" L x 5" W x 15/16" D |
| Media | LPG Air Mixtures |
| Pressure Rating | 5 psi |
| Softgoods material | PTFE/Rubber |
| Temperature Rating | -40 to 125 deg F |
