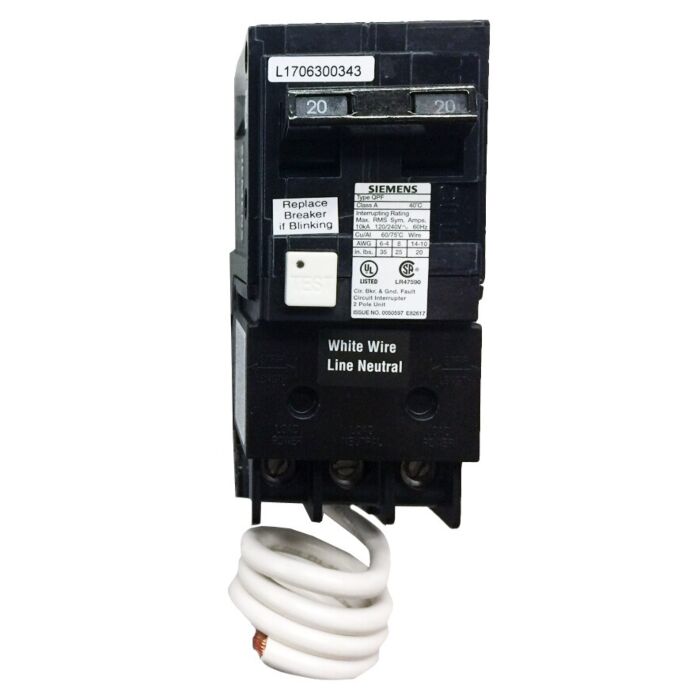

These Q series miniature circuit breakers plug into place in panel boards and EQ load centers and don't require bolting, so they're easier to install than bolt-on breakers. They interrupt currents when low-level faults are detected in the circuit. They connect to the power supply through bus bars, which eliminates the need to pigtail wires and helps organize the panel board or load center.
- CSA Certified; HACR Rated; UL Listed
Brand | Siemens |
---|---|
UPC | 887621216665 |
Store Location (Lititz, PA) | Aisle 08, Section D2 |
Package Length (in) | 6.00" |
Package Width (in) | 3.20" |
Package Height (in) | 2.40" |
Series | QPF |
Current Rating | 20 A |
Voltage Rating | 120/240 V |
Interrupt Rating | 10 kA at 120/240V |
Number of Poles | 2 |
Phase | 1 ph |
Trip Range | 5 mA |
Terminal Type | Lug |
Wire Size | 10-14 AWG |
Mounting Type | Plug-In |
