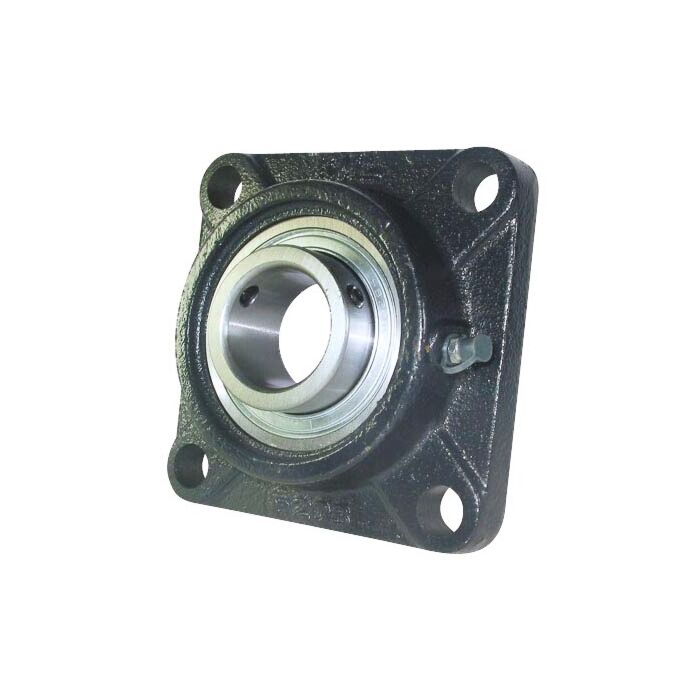

Premium 4 Bolt Flange Bearing, 1" Set Screw Lock, Extended Race UCF20516
SKU: UCF20516KML
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$23.72
Features
Specifications
Flange Mount Ball Bearing, 4-Bolt/Hole, Series: UCF, 1 in Bore Dia, 70 mm Bolt Center-to-Center Length, 12 mm Bolt Circle, 95 mm Overall Length, Cast Iron Bearing
- Diamond flange
- Wide inner ring
| Brand | KML |
|---|---|
| UPC | 040000004264 |
| Store Location (Lititz, PA) | Aisle 09, Section W4 |
| Package Length (in) | 4.00" |
| Package Width (in) | 3.60" |
| Package Height (in) | 1.80" |
| Manufacturer Part Number | UCF205-16 |
| Bearing Type | Standard 4 Bolt Flange |
| Features | Set Screw Lock, Extended Race |
| Length | 2-3/4" Bolt Spacing |
| Height | 1-13/32" |
| 205 Series | 205 Series |
| Inner Diameter | 1" |
| Overall Length | 3-3/4" |
