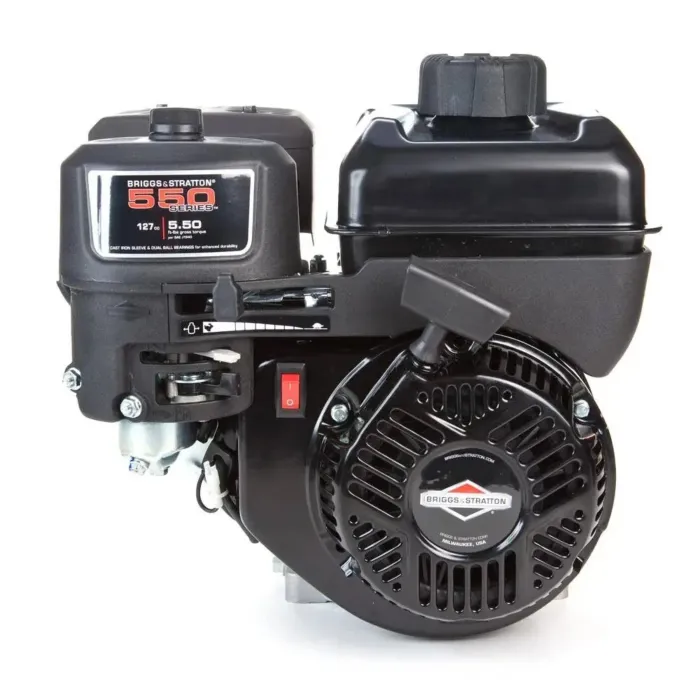

3600 rpm 0.5 gal 127 cc Single Cylinder 4-Cycle Vanguard Engine
SKU: BS83132
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$342.71
Features
Specifications
Briggs & Stratton 83132-1035-F1 horizontal 550 Series engine is 127cc and puts out 5.50 gross torque. This OHV utility engine has a 3/4″ x 2-27/64″ crankshaft. It has a recoil start and is equipped with a muffler. Briggs & Stratton 550 Series general purpose engines are designed to efficiently deliver the power needed for outdoor work. Common applications include tillers, pressure washers, pumps and generators. Buyer protection package provides a two-year limited consumer warranty. 50-State CARB Compliant. All engines purchased from us ship for free and are foam packed for added protection during transit.
- Utility/general applications like log splitters, pressure washers, compressors & tillers
- Produces 5.5 ft-lbs of torque- Power levels are stated gross torque per SAE J1940
- Overhead valve (OHV) technology - More power, less fuel-use & lower emmisions; Runs cooler for longer engine life
- DuraLube™ Splash Lubrication System & Dura-Bore™ Cast Iron Cylinder Sleeve - Gear-driven system keeps engine well oiled for continous protection
- Withstands the wear and abuse for longer engine live
- Float-feed carburetor & mechanical governor
- Allows for fast fuel delivery for reliable starting and operation - Increases throttle response to maximize usable power for higher torque applications
- Magnetron® electronic ignition system - Extremely reliable design, for consistent starting while being maintenance-free
- Recoil-starter w/ automatic compression release - Requires less effort so you can enjoy 1-2 pull starts
- Maxi-clean™ automotive - Pleated paper design, provides excellent debris filtration
- Includes Lo-Tone muffler, .5-gallon fuel tank & fuel shut off
| Brand | Briggs & Stratton |
|---|---|
| UPC | 024847816136 |
| Store Location (Lititz, PA) | Aisle 07, Section N3 |
| Package Length (in) | 17.38" |
| Package Width (in) | 16.25" |
| Package Height (in) | 16.25" |
| Manufacturer Part Number | 83132-1035-F1 |
| Type | Single Cylinder, 4-Cycle |
| Series | XR550 |
| Speed | 3600 rpm |
| Fuel Tank Capacity | 0.5 gal |
| Displacement | 127 cc |
| Starter Type | Recoil |
| Fuel Type | Gas |
| Ignition Type | Electronic |
| Oil Tank Capacity | 20 oz |
| Air Cleaner Type | Dual Element |
| Shaft Diameter | 3/4 in |
| Shaft Length | 2-27/64 in |
