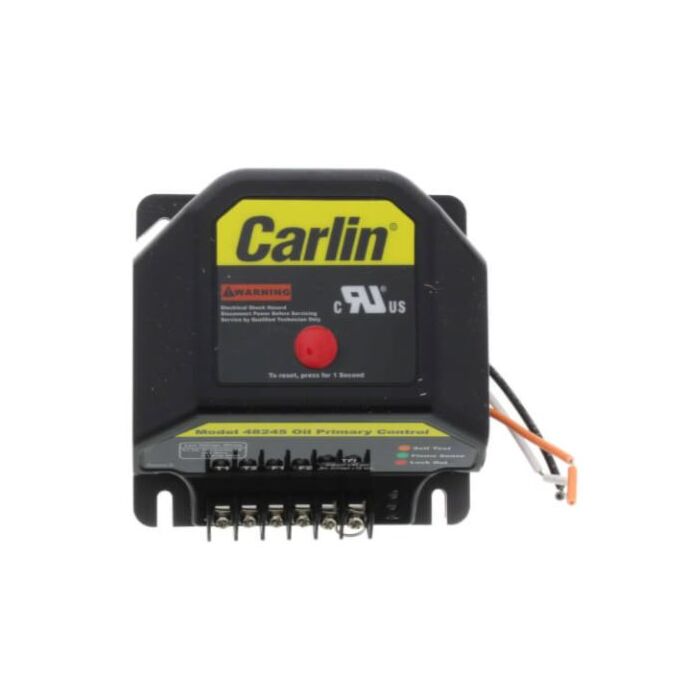

4 x 4 in 120 V 7.4 A Oil Primary Control

SKU: 48245S | Location: Aisle 04, Section D4
check
PICKUP
Your store: PaulB Lititz, PA |
check
DELIVERY
Ship to your home or business

check 2 In stock

Features
Intermittent Ignition Oil Primary Control is ideal for residential oil fired burners used in boilers, forced air furnaces, water heaters and other oil burning appliances where pre\/post-purge is not a safety requirement. It uses a C554A Cadmium Sulfide (cad cell) Flame Detector to monitor the burner flame. In the event of flame failure or flame loss, the control will shut the system down. In the event of a lockout, pressing and holding in the red external reset button for three seconds will manually reset the safety switch.
  • Controls oil burner, oil valve (if desired) and the ignition transformer in response to a call for heat
  • Solid state flame sensing circuit
  • LED on terminal strip indicates system lockout
  • Enclosed safety switch with external reset button
  • Replacement for popular competitive models
  • Underwriters Laboratories Inc Approvals
  • C554A Cadmium Sulfide Flame Detector and 24 VAC thermostat required
Specifications
UPC 800442009001
Store Location (Lititz, PA) Aisle 04, Section D4
Package Length (in) 4.60"
Package Width (in) 2.60"
Package Height (in) 5.20"
Discountable Y
Size 4 x 4 in
Voltage Rating 120 V
Current Rating 7.4 A
Length 2-1/2 in
Width 4-1/8 in
Height 4-3/8 in
Temperature Rating -30 to 130 deg F
