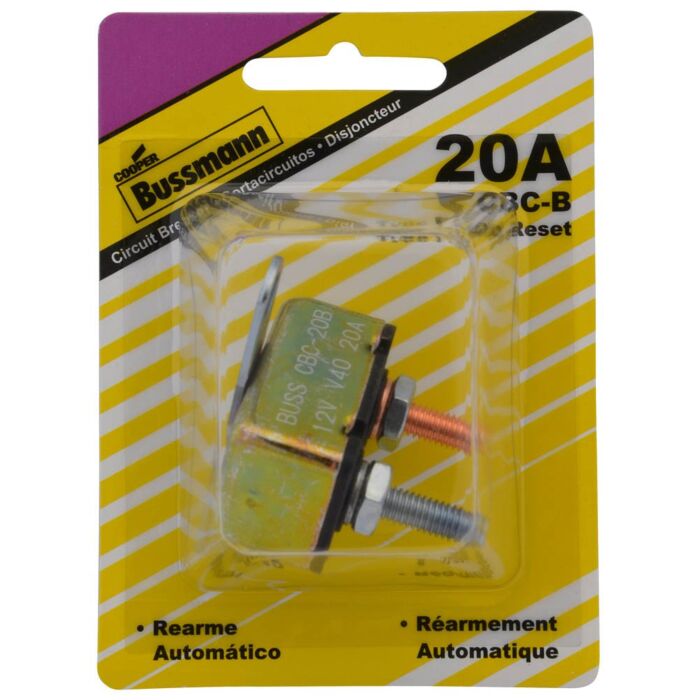

20 A 14 VDC 1.5 kA Automotive Circuit Breaker

Bussmann BP/CBC-20B-RP Type I Stud-Mount 20 Amp Automatic Reset Circuit Breaker with Crosswise Bracket - CBC-B Heavy-Duty Breakers - Used in many heavy-duty and truck applications. Use ring terminals to connect breaker into circuit. Cooper Bussmann stud-type circuit breakers feature a patented fail-safe technology. Complies with SAE standard J553. Type I - Automatic Reset Circuit breaker automatically resets after opening. If the fault still exists, the breaker will continue to cycle between ON and OFF positions until the overload is corrected. These devices are sometimes called "cycling breakers." Type I/Automatic Reset circuit breakers do not address or correct, overcurrent or fault conditions. They only react by cycling OFF and ON. Any overcurrent or fault condition that causes any Type I circuit breaker to operate should be corrected as soon as possible. Continual vehicle operation under an overcurrent or fault condition (causing the Type I circuit breaker to cycle) is NOT recommended.

• CBC-B Stud-Mount Circuit Breakers with Crosswise Bracket
• Rated 20 Amp at 14 Vdc, 1.5kA Interrupting Rate
• 10-32 Studs on 0.69 in Centers for ring terminal connections
• Type I - Automatic Reset - Circuit breaker automatically resets itself after opening
