58 VDC 20 A 1 kA High Amp Fuse
SKU: FMX20LP
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$9.29
Features
Specifications

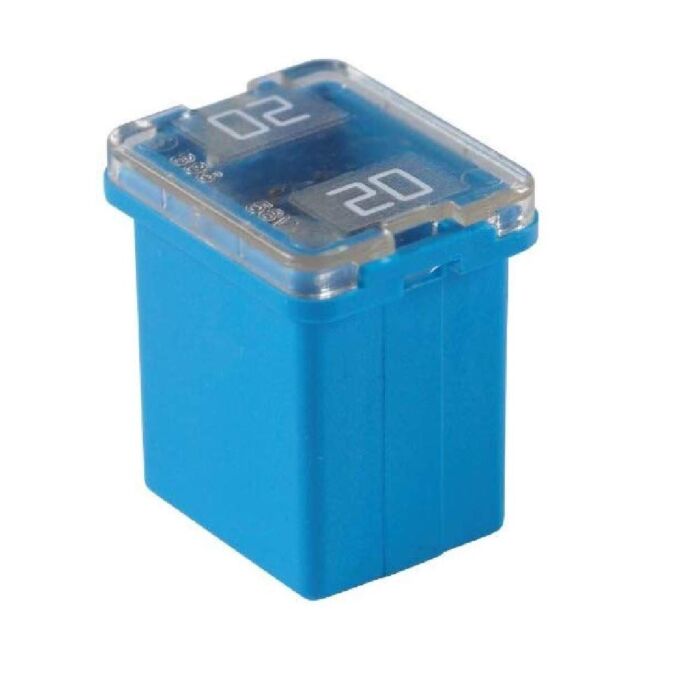

Bussmann BP/FMX-20LP-RP Low-Profile Female Termination 20 Amp Maxi Time-Delay Fuse - Female Maxi Fuses - Developed to meet the growing OEM demand for smaller components, the FMX and low-profile FMX Female Maxi fuses offer high amp protection in compact packages. Use 5.5 mm blade centers with a 6.0 mm width and .81 mm thick blades.
- FMX_LP Low-Profile Female Maxi Fuses
- Rated 20 Amp at 58Vdc, 1kA Interrupting Rate at 32Vdc
- Color Coded Blue
| Brand | Bussmann |
|---|---|
| UPC | 051712182089 |
| Store Location (Lititz, PA) | Aisle 14, Section N1 |
| Package Length (in) | 3.40" |
| Package Width (in) | 1.40" |
| Package Height (in) | 0.60" |
| Manufacturer Part Number | BP/FMX-20LP-RP |
| Series | FMX-20LP-RP |
| Voltage Rating | 58 VDC |
| Current Rating | 20 A |
| Interrupt Rating | 1 kA |
| Color | Blue |
