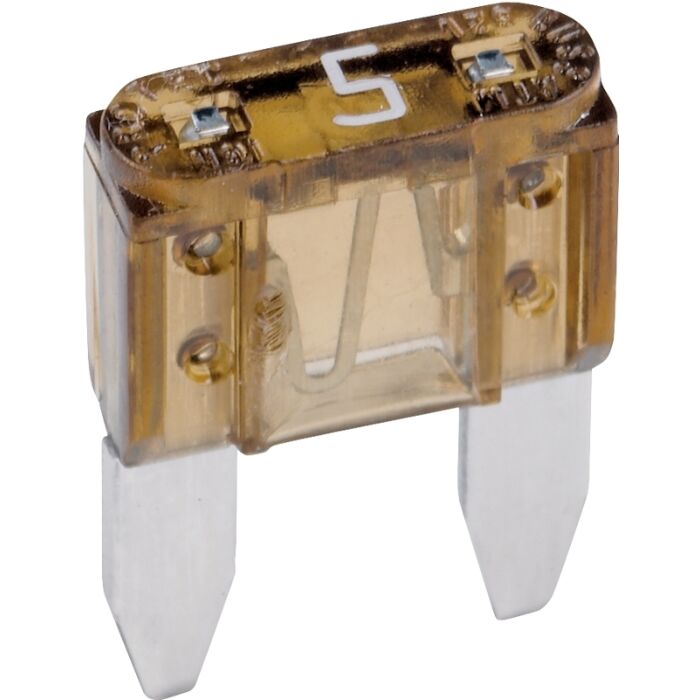

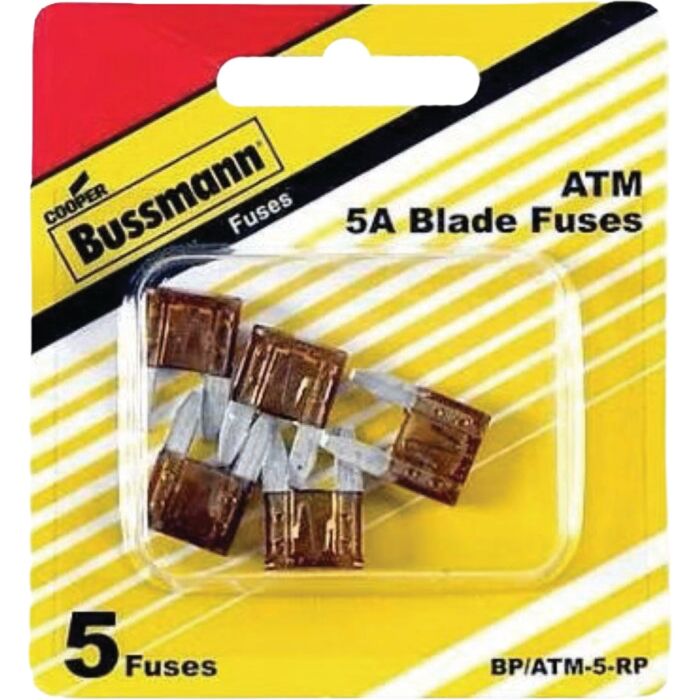

BP/ATM-5-RP Automotive Fuse, Blade Fuse, 32 V, 5 A, 1 kA Interrupt
SKU: ATM5
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$6.29
Features
Specifications
ATM fuses use the same universal color-coding as ATC fuses and feature an enclosed element offering protection against shocks and sparks, plus corrosion resistance for longer service life.
- Halogen-free
| Brand | Bussmann |
|---|---|
| UPC | 051712174213 |
| Store Location (Lititz, PA) | Aisle 14, Section N1 |
| Package Length (in) | 3.40" |
| Package Width (in) | 1.80" |
| Package Height (in) | 0.60" |
| Manufacturer Part Number | BP/ATM-5-RP |
| Body Material | Plastic |
| Color | Tan |
| Contact Material | Silver Zinc |
| Current Rating | 5 A |
| Element Type | Single |
| Fuse Type | Blade |
| Interrupt Rating | 1 kA |
| Length | 0.64 in |
| Operating Temperature | -40 to 100 deg C |
| Rejection/Non-Rejection | Non-Rejection |
| Resistance | 16.66 mOhm |
| Voltage Rating | 32 V |
