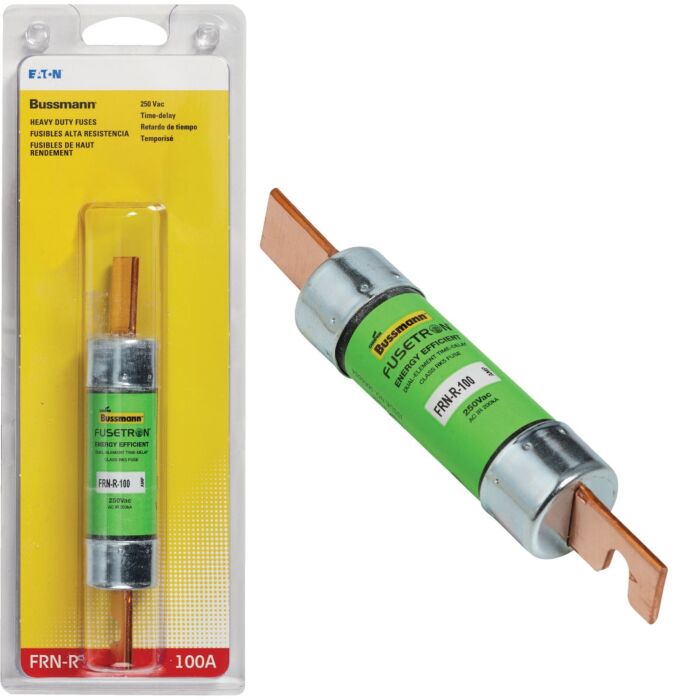

100A FRN-R Cartridge Heavy-Duty Time Delay Cartridge Fuse
SKU: 500926
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$39.99
Features
Specifications
Heavy-duty Fusetron, dual element, time delay FRN-R cartridge fuse for motor protection. Helps protect motors from burnout caused by overloads or single phasing. Time delay feature allows the initial startup surge for typical motors to pass, but opens prior to burnout when longer dangerous overloads are present. UL (Underwriter's Laboratories) listed Class R 200,000 AIR (amp interrupting rating). 1/10A to 60A have ferrule ends, 70A to 200A have knife-blade ends. 250V.
| Brand | Bussmann |
|---|---|
| UPC | 051712100137 |
| Store Location (Lititz, PA) | Aisle 08, Section D3 |
| Package Length (in) | 1.06" |
| Package Width (in) | 1.06" |
| Package Height (in) | 5.88" |
| Manufacturer Part Number | BP/FRN-R-100 |
| Amperage | 100 |
| Fuse Type | FRN-R Cartridge |
| Fuse Function | Heavy-Duty Time Delay |
| Class | Rk5 |
| Diameter (In.) | 1.0625 |
| Length (In.) | 5.875 |
| Voltage | 250 |
| Certification | UL Listed |
