15A 250VAC Time Delay Fuse
SKU: 624115
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$14.49
- Buy 10 for $13.04 each and save 10%
Features
Specifications

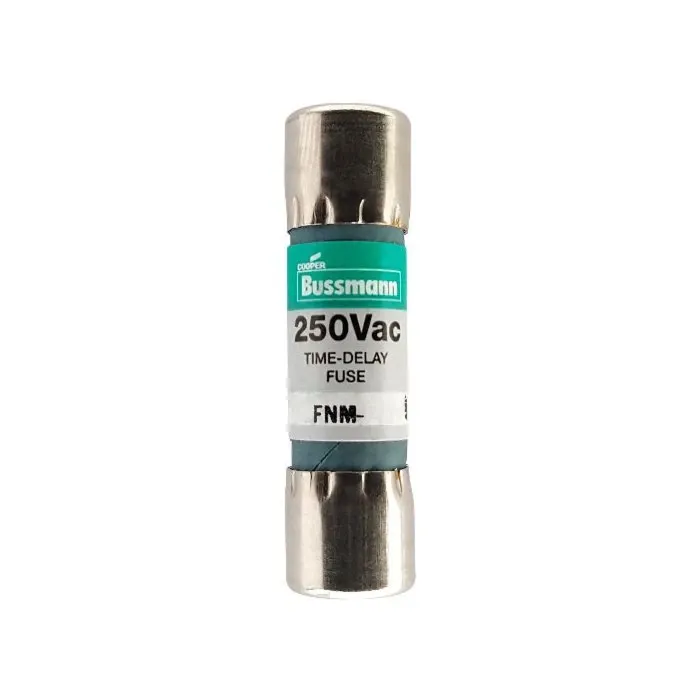

This FNM-15 dual-element, time-delay cylindrical fuse—often referred to as a slow-blow fuse—is a current protection device designed to tolerate brief electrical spikes from short events like motor starts or equipment startups. It features a tube-shaped body with conductive metal caps, allowing for easy installation and removal from clip-style holders.
| Brand | Bussmann |
|---|---|
| UPC | 051712521505 |
| Package Length (in) | 0.38" |
| Package Width (in) | 0.38" |
| Package Height (in) | 1.60" |
| Manufacturer Part Number | FNM-15 |
| Type | FNM Fuse |
| Power | 15 A |
| Style | Time Delay Fuse |
| Series | FNM |
| Body Material | Fiberglass |
| Compatible Fuse Block Series | BM; BMM; C2617; C5268; CHM; HEB; HEX; HPG; HPS; OPM-1038; OPM-NG |
| Body Style | Cylindrical |
| Fuse Class or Type | Midget |
| Interrupt Rating | - AC10 kA |
| Overall Diameter | 13/32" |
| Overall Length | 1-1/2" |
| Speed | Time-Delay |
| Standards | CE; CSA Class 1422-01; UL-248-14 Guide JDYX |
| Visual Indication | Non-Indicating |
