World Casters & Equipment Manufacturing

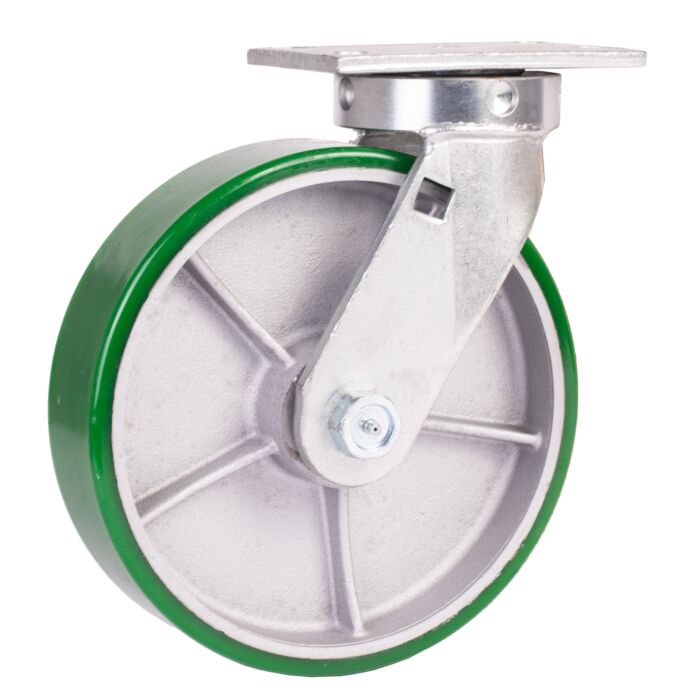

2200 lb 10 in Poly on Cast Iron Swivel Caster
SKU: C921001PCI
$214.99
Features
Specifications
Swivel Caster, 1 Wheels, Top Plate Fastener, 2200 lb, 10 in Wheel Dia, 2-1/2 in Wheel Width, Polyurethane on Cast Iron Wheel, 7-3/4 in Swivel Radius, 11-3/4 in Overall Height, 4-1/2 x 6-1/4 in Fastener, Roller
- Swivel with Top Plate
- Single ball bearing, precision machined, hardened & heat treated, “Kingpinless style sealed raceway.” (3.26” diameter raceway with 1/2” ball bearings.)
- Eliminates problems associated with kingpin failure
- Legs are formed from 23/64” forged steel and are double-welded for strength
- Corrosion-resistant zinc plated finish
| Brand | World Casters & Equipment Manufacturing |
|---|---|
| Store Location (Lititz, PA) | Aisle 32, Section W6 |
| Package Length (in) | 9.00" |
| Package Width (in) | 2.60" |
| Package Height (in) | 11.60" |
| Manufacturer Part Number | 9210-01-PCI |
| Number of wheels | 1 |
| Fastener Type | Top Plate |
| Capacity | 2200 lb |
| Wheel Diameter | 10 in |
| Wheel Width | 2-1/2 in |
| Wheel Material | Polyurethane on Cast Iron |
| Swivel Radius | 7-3/4 in |
| Overall Height | 11-3/4 in |
| Fastener Size | 4-1/2 x 6-1/4 in |
| Bearing | Roller |
| Application | For great for applications involving extreme shock loading, towing, moving over cracks, uneven floors and tarmacs, heavy mobile machinery & equipment, heavy-duty material handling carts, buggies & platform trucks, ground support equipment, heavy duty warehouse and manufacturing plant applications, etc |
