World Casters & Equipment Manufacturing

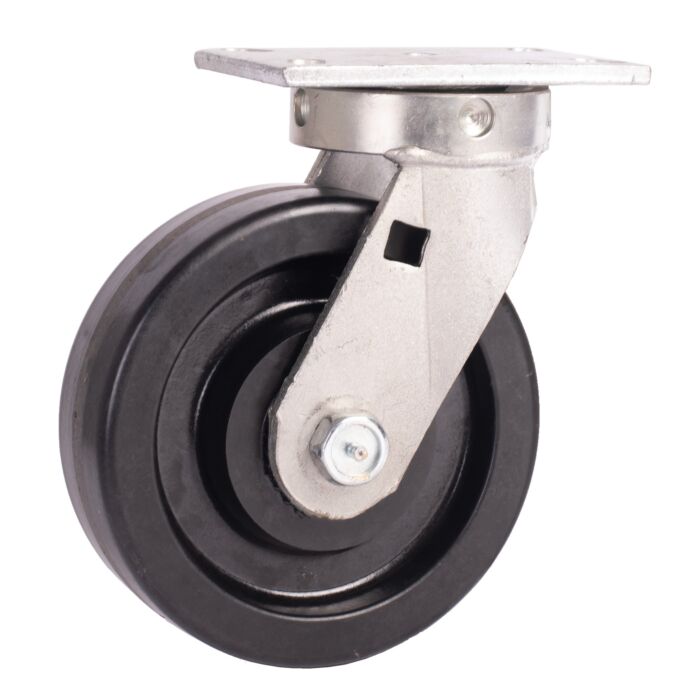

2200 lb 8 in Phenolic Swivel Caster
SKU: C928001PHN
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$159.99
Features
Specifications
Swivel Caster, 1 Wheels, Top Plate Fastener, 2200 lb, 8 in Wheel Dia, 2-1/2 in Wheel Width, Phenolic Wheel, 6-3/8 in Swivel Radius, 10-1/8 in Overall Height, 4-1/2 x 6-1/4 in Fastener, Roller
- Swivel with Top Plate
- Single ball bearing, precision machined, hardened & heat treated, “Kingpinless style sealed raceway.” (3.26” diameter raceway with 1/2” ball bearings.)
- Eliminates problems associated with kingpin failure
- Legs are formed from 23/64” forged steel and are double-welded for strength
- Corrosion-resistant zinc plated finish
| Brand | World Casters & Equipment Manufacturing |
|---|---|
| Store Location (Lititz, PA) | Aisle 32, Section W5 |
| Manufacturer Part Number | 9280-01-PHN |
| Number of wheels | 1 |
| Fastener Type | Top Plate |
| Capacity | 2200 lb |
| Wheel Diameter | 8 in |
| Wheel Width | 2-1/2 in |
| Wheel Material | Phenolic |
| Swivel Radius | 6-3/8 in |
| Overall Height | 10-1/8 in |
| Fastener Size | 4-1/2 x 6-1/4 in |
| Bearing | Roller |
| Application | For great for applications involving extreme shock loading, towing, moving over cracks, uneven floors and tarmacs, heavy mobile machinery & equipment, heavy-duty material handling carts, buggies & platform trucks, ground support equipment, heavy duty warehouse and manufacturing plant applications, etc |
