World Casters & Equipment Manufacturing

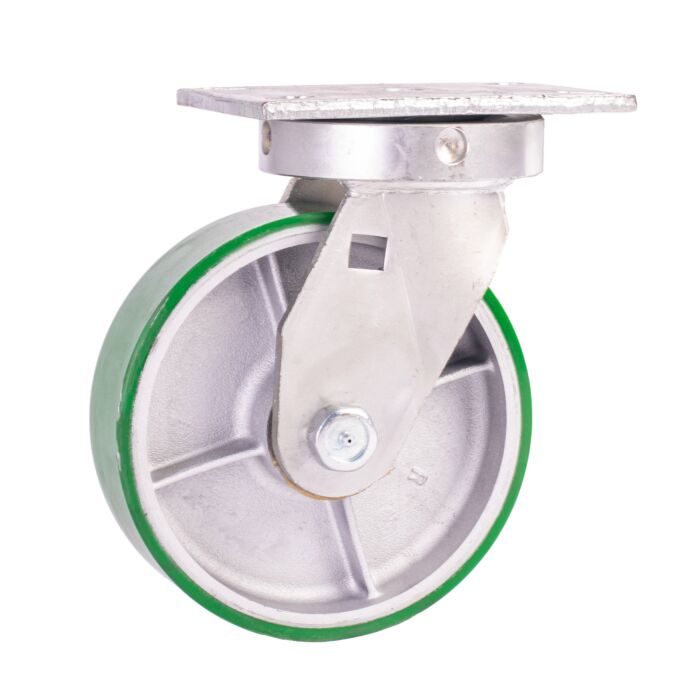

2500 lb 8 in Poly on Cast Iron Swivel Caster
SKU: C948001PCI
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$179.99
Features
Specifications
Swivel Caster, 1 Wheels, Top Plate Fastener, 2500 lb, 8 in Wheel Dia, 2-1/2 in Wheel Width, Polyurethane on Cast Iron Wheel, 6-1/16 in Swivel Radius, 10-1/8 in Overall Height, 5-9/32 x 7-1/4 in Fastener, Roller
- Swivel with Top Plate
- Top plate and yoke assembly : AISI 1045 drop forged steel. Legs are formed from 23/64 in forged steel and are double welded for strength
- Eliminates problems associated with kingpin failure
- Corrosion-resistant zinc plated finish
| Brand | World Casters & Equipment Manufacturing |
|---|---|
| Store Location (Lititz, PA) | Aisle 32, Section W5 |
| Package Length (in) | 7.20" |
| Package Width (in) | 2.40" |
| Package Height (in) | 10.00" |
| Manufacturer Part Number | 9480-01-PCI |
| Number of wheels | 1 |
| Fastener Type | Top Plate |
| Capacity | 2500 lb |
| Wheel Diameter | 8 in |
| Wheel Width | 2-1/2 in |
| Wheel Material | Polyurethane on Cast Iron |
| Swivel Radius | 6-1/16 in |
| Overall Height | 10-1/8 in |
| Fastener Size | 5-9/32 x 7-1/4 in |
| Bearing | Roller |
| Application | For great for applications involving extreme shock loading, towing, moving over cracks, uneven floors and tarmacs, heavy mobile machinery & equipment, extra heavy-duty material handling carts, buggies & platform trucks, ground support equipment, extra heavy-duty warehouse and manufacturing plant applications, a frames, etc |
