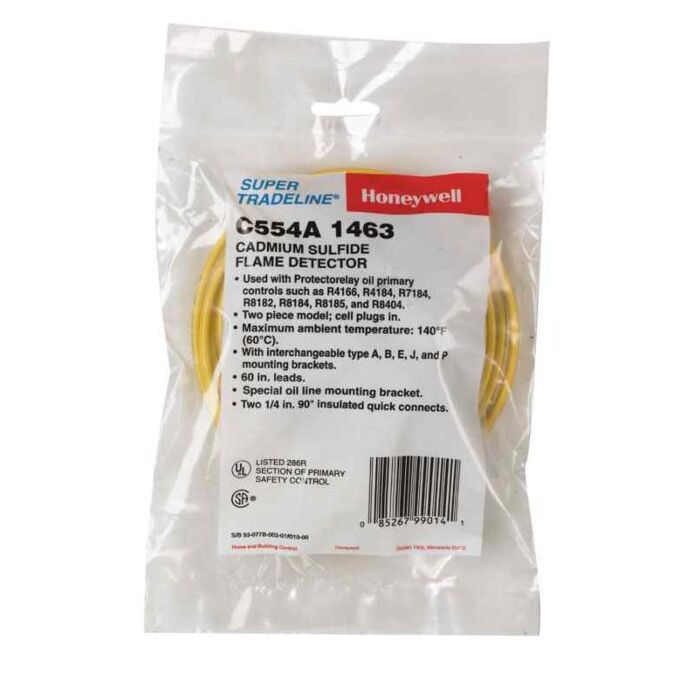

Cadmium Sulfide 60 in 1/2 in W x 1 in L x 1-7/8 in H Flame Detector
SKU: C554A1463
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$49.99
Features
Specifications
Cadmium sulfide flame detector for use with protect relay oil primary controls. Can be used with controls such as R4166, R4184, R7184, R8182, R8184, R8185 AND R8404. Photoconductive flame sensing device for sequencing oil burner systems. Two piece model, cell plugs inMaximum ambient temperature 140Adeg F (60Adegc)With interchangeable type A, B, E, J and P mounting brackets.
- On flame failure, the light sensitive cadmium sulfide cell, in conjunction with flame sensing circuitry, causes the Protectorelay® control to shutdown the main oil burner
- Glass-to-metal hermetic seal in plug-in cell prevents deterioration by humidity, soot or oil fume
- Replaceable CAD cell
- Photoconductive flame sensing device for sequencing oil burner systems
- CSA Certified
| Brand | Honeywell |
|---|---|
| UPC | 085267990141 |
| Store Location (Lititz, PA) | Aisle 04, Section D3 |
| Package Length (in) | 5.20" |
| Package Width (in) | 4.80" |
| Package Height (in) | 1.00" |
| Gas Type | Cadmium Sulfide |
| Lead Length | 60 in |
| For Use with | R4166, R4184, R8182, R8184, R8185, R8404, R8991, R7997, R7184 and R7284 Oil Primary Control |
| Dimensions | 1/2 in W x 1 in L x 1-7/8 in H |
| Color | Yellow |
| Mounting Type | Type R Bracket |
