Accurate Bearing Company

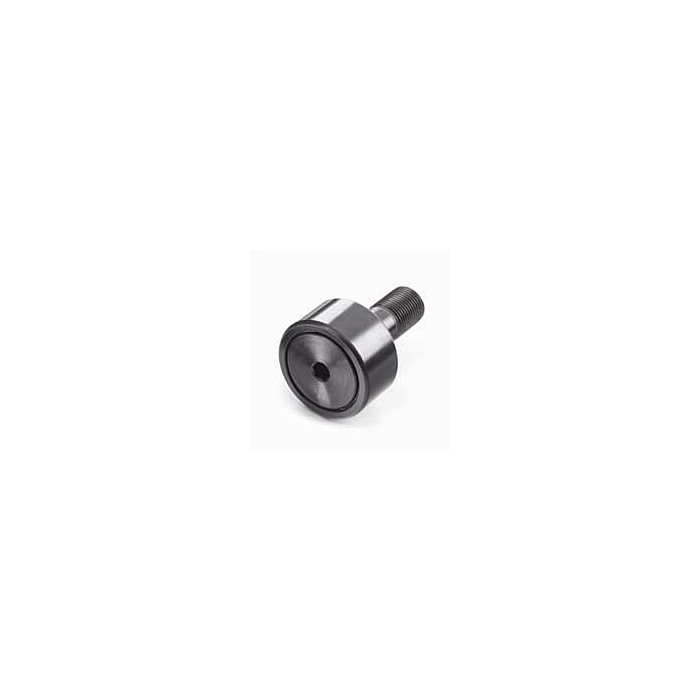

Cam Follower, Slot Head, 1.5" Roller Dia., 7/8" Roller Width
SKU: CR24
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$45.60
Features
Specifications
Cam Follower, Slot Head, 1.5" Roller Dia., 7/8" Roller Width
- The Full Complement design provides a high radial load carrying capacity
- Supplied fully lubricated with high quality multi-purpose grease
- Re-lubricatable through stem or either end of the stud
- Black Oxide Finish
- CF 1 1/2SB Equivalent
| Brand | Accurate Bearing Company |
|---|---|
| Store Location (Lititz, PA) | Aisle 09, Section X5 |
| Package Length (in) | 2.40" |
| Package Width (in) | 1.60" |
| Package Height (in) | 1.80" |
| Manufacturer Part Number | CR-24 |
| Roller Width | 7/8" |
| Roller Shape | Flat |
| Overall Length | 2.375" |
| Dynamic Load C (Lbs) | 4840 |
| Static Load Co (Lbs) | 5640 |
| Material | 52100 Steel |
| Operating Temperature Range | -20 to +248F |
| Lubrication | NLGI Grade 2 Multipurpose Lithium Soap Based Bearing Grease |
| Cage Material | Full Complement - No Cage |
| Closure Type | Double Sealed |
| Color /Coating | Black Oxide |
| Weight (Lbs.) | 1.17 |
