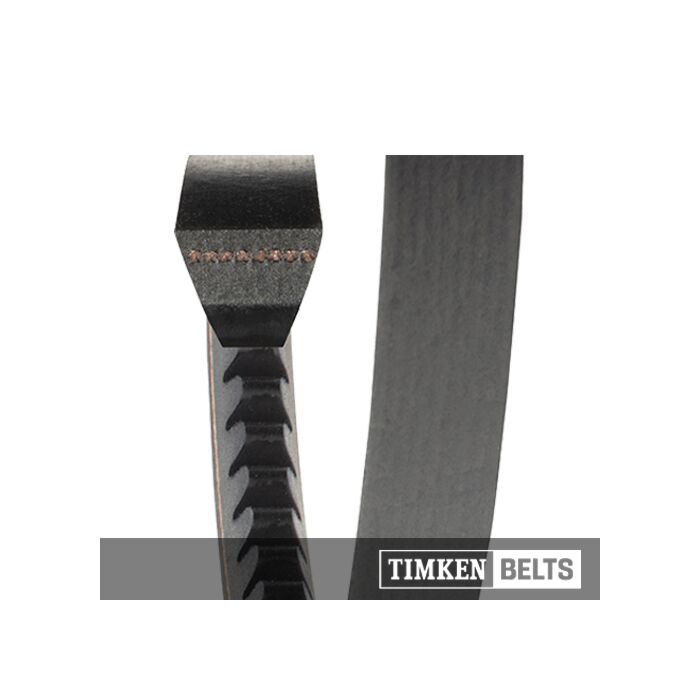

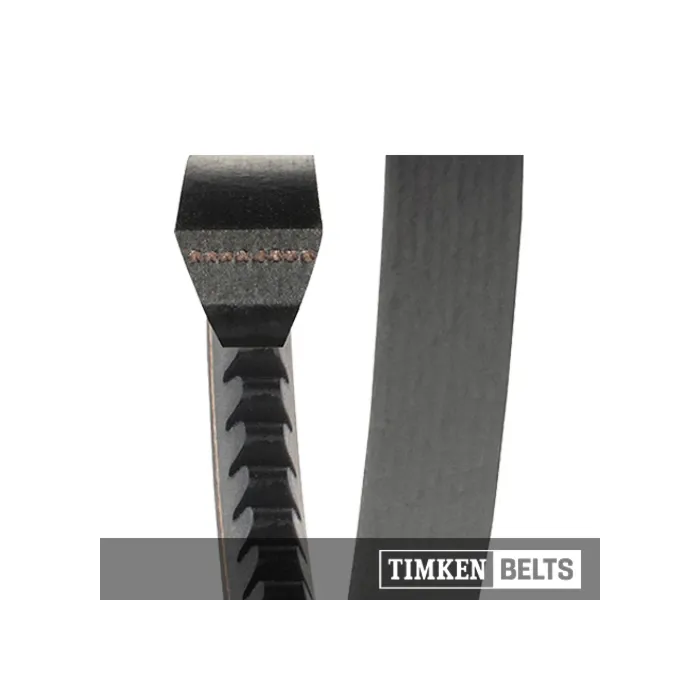

More Grip. Less Slip. The Power-Wedge Cog-Belt combines the advantages of the narrow wedge design with raw edge performance for maximum operating efficiency in a compact drive package. The narrow profile permits reduced drive widths and a smaller drive envelope. Higher horsepower ratings translate into greater design flexibility — reducing drive cost, space and weight. The Power-Wedge Cog-Belt is now made of EPDM (Ethylene Propylene Diene Monomer), a synthetic rubber with outstanding properties. The raw-edge construction contributes to outstanding operating efficiency. More torque with little or no slippage. The result is savings — in time, in belt life and in energy costs.
- High horsepower ratings
- Design flexibility
- Long belt life
- Durable
- Oil and heat resistant
- Static conductive
- Resists hardening and glazing
- Broad operating temperature range (-50°F to +250°F)
- Smooth running
- Energy efficient
- Built to chek mate belt tolerances for a matched set
Brand | Timken Belts |
---|---|
UPC | 785201825736 |
Store Location (Lititz, PA) | Aisle 12, Section M9 |
Package Length (in) | 7.80" |
Package Width (in) | 22.60" |
Package Height (in) | 1.00" |
Manufacturer Part Number | 5VX530 |
Section Size | 5VX |
Outside Length | 53.6 in |
Top Width | 0.625 in |
Thickness | 0.53125 in |
Cogged/Smooth | Cogged |
Rib Width | 0.625 in |
Number of Ribs | 1 |
Construction | Cogged |
Reinforced Material | Polyester |
Resists | Oil & Heat Resistant |
Material | EPDM |
Temperature Rating | -50 to 250 deg F |
Color | Black |
Application | Fans, pumps, HVAC, compressors and more |
