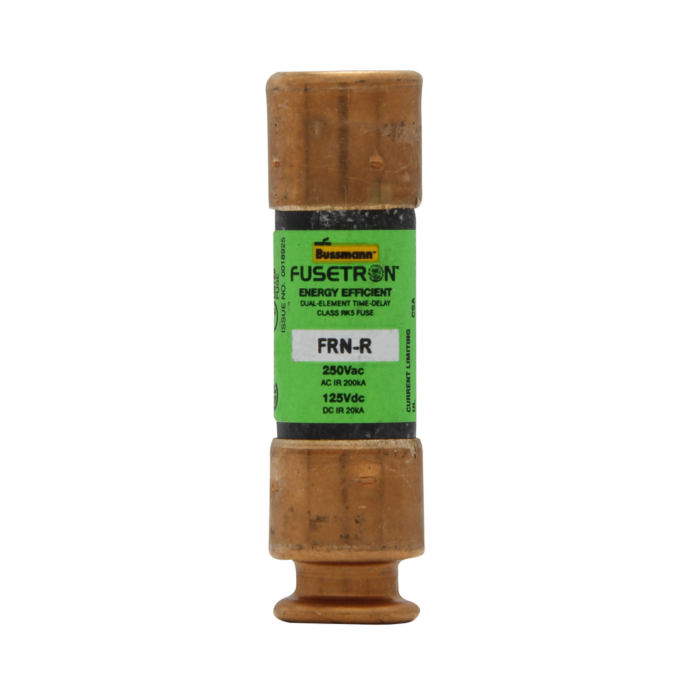

Cartridge Fuse
SKU: 527580
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$26.99
Features
Specifications
Downloads
Cartridge Fuse
| Brand | Bussmann |
|---|---|
| UPC | 051712112017 |
| Store Location (Lititz, PA) | Aisle 08, Section D3 |
| Package Length (in) | 0.56" |
| Package Width (in) | 0.56" |
| Package Height (in) | 2.00" |
| Manufacturer Part Number | BP/FRN-R-15 |
| Height | 2 IN |
| Length | .56 IN |
| Width | .56 IN |
| Weight | .11 LB |
| Type | Time delay, current limiting |
| Application | Combination starters, motor control centers, machinery disconnects, power panelboards |
| Amperage Rating | 15A |
| Interrupt Rating | 200 kAIC Vac, 20 kAIC Vdc |
| Class | Class RK5 |
| Connection | Ferrule end x ferrule end |
| Packaging Type | Standard |
| Diameter | .56 IN |
| Fuse Indicator | Non Indicating |
| Response Time | 8 s at 500% of rated current |
