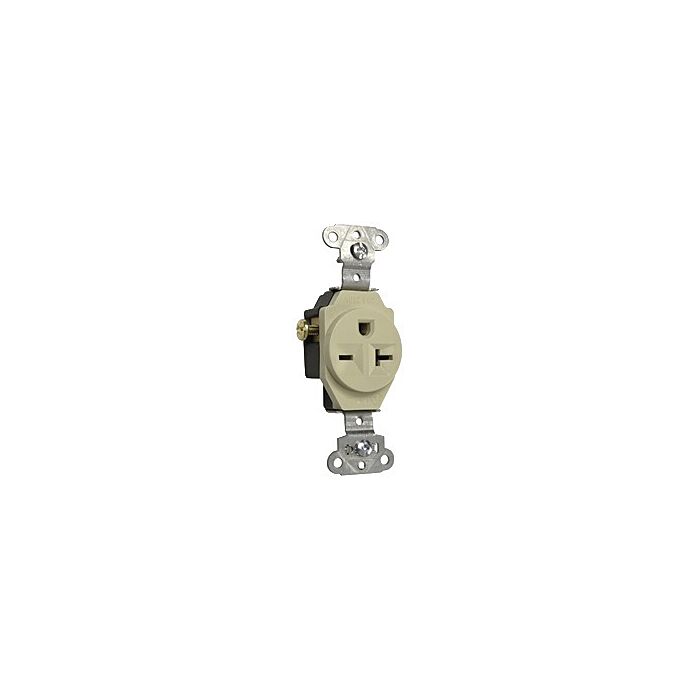

CC SPEC SNGL RECEPT 20A 250V IV
SKU: E5851I
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$6.79
- Buy 10 for $6.11 each and save 10%
Features
Specifications
Downloads
CC SPEC SNGL RECEPT 20A 250V IV
- cULus Listed
| Brand | Pass & Seymour |
|---|---|
| UPC | 785007856330 |
| Store Location (Lititz, PA) | Aisle 09, Section D3 |
| Package Length (in) | 1.81" |
| Package Width (in) | 1.25" |
| Package Height (in) | 1.25" |
| Manufacturer Part Number | 5851ICC8 |
| Depth | 1.08 in |
| Width | 1.38 in |
| Amperage | 20.0 A |
| Voltage | 250.0 V |
| Country of Origin | Mexico |
| Number of Wires | 3.0 |
| Indoor/Outdoor | Indoor |
| Wire Size | 14 - 10 AWG |
| Wall Plate Included | No |
| Number of Receptacles | 1.0 |
| Outlet Type | Straight Blade |
| Number of Poles | Double Pole |
| Application Sector | Commercial |
| Connection Location | Side Only |
| NEMA Configuration Code | 6-20R |
| Wire Connection Type | Screw Terminals |
| Warranty Type | 1-Year Limited Warranty |
| Operating Temperature Max | 60.0 °C |
| Operating Temperature Min | -40.0 °C |
| Operating Temperature | -40°-60°C |
| Features | Single Piece Plated Steel Mounting Strap |
| Color | Ivory |
| Product Line | Pass & Seymour |
