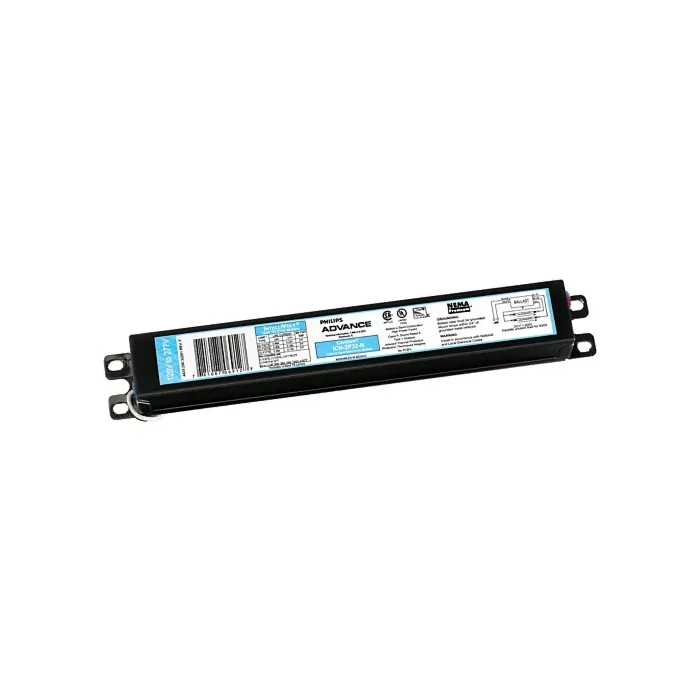

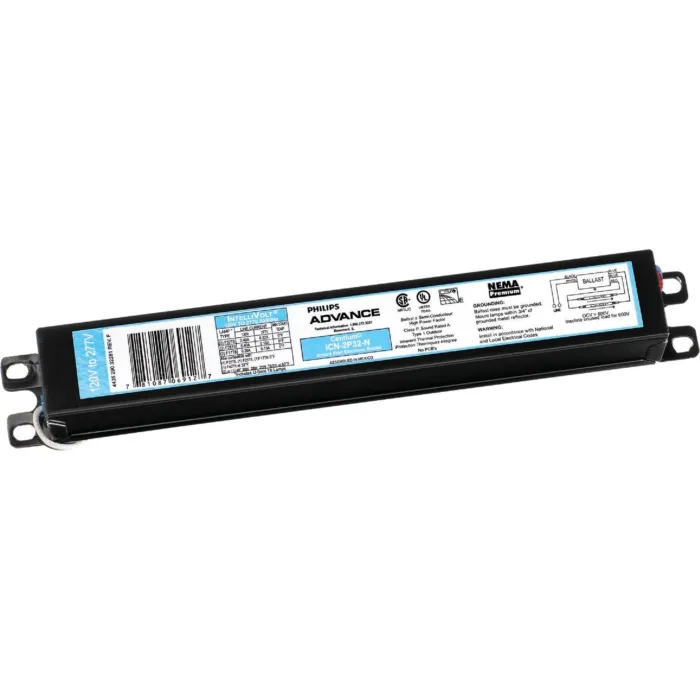

CENTIUM ICN2P32N35I
SKU: P196865
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$32.99
Features
Specifications
CENTIUM ICN2P32N35I
| Brand | Philips Lighting |
|---|---|
| UPC | 781087069127 |
| Store Location (Lititz, PA) | Aisle 10, Section D2 |
| Package Length (in) | 9.00" |
| Package Width (in) | 3.00" |
| Package Height (in) | 0.80" |
| Manufacturer Part Number | 196865 |
| Order product name | CENTIUM ICN2P32N35I |
| EAN/UPC - Product | 781087069127 |
| Order code | 913710842701 |
| Numerator - Quantity Per Pack | 1 |
| Numerator - Packs per outer box | 10 |
| Material Nr. (12NC) | 913710842701 |
| Net Weight (Piece) | 0.350 kg |
| Input Voltage | 120 to 277 V |
| Input Frequency | 50 to 60 Hz |
| Total Harmonic Distortion USA | 10 % |
| Ignition Method | Instant Start |
| Crestfactor (Nom) | 1.7 |
| Ignition Time (Nom) | 0.1 s |
| Ballast Factor (Nom) | 0.89 |
| Power Factor (Nom) | 0.98 |
| Input Current (Max) | 0.49 A |
| Input Current (Min) | 0.22 A |
| Input Power (Nom) | 56-56 W |
| Rated Lamp Power | 32 W |
| Housing Material | Metal |
| Housing | N |
| Housing Dimensions | 9.5" x 1.3" x 1.0" |
| Color Input Terminals | No terminals |
| Color Output Terminals | No terminals |
| Wire Striplength | 0.50/0.375 mm |
| Lamp Connection | Parallel |
| Wire Length by Color | See data sheet |
| Wire Gauge (Nom) | 18AWG mm |
| Wire Type | Solid |
| Remote Wiring Configuration Allowed | Yes |
| Tandem Wiring Configuration Allowed | Yes |
| Through Wiring Configuration Allowed | Yes |
| Max Ballast-Lamp Distance Remote Wiring | ES = 6' / Standard = 20' |
| Max Ballast-Lamp Distance Tandem Wiring | ES = 6' / Standard = 20' |
| Max Ballast-Lamp Distance Through Wiring | ES = 6' / Standard = 20' |
| Connector Type | No connector |
| EMC Immunity Standard | FCC Non-Consumer |
| Approval Marks | CSA certificate |
| Hum And Noise Level | A |
| UL Recognized | No |
| T-Case Maximum (Nom) | 70 °C |
| Lamp Type | F32T8 |
| Number of Lamps | 1/2 piece/unit |
| Ballast Type | Electronic Fluorescent |
| Base Model | ICN2P32N |
| Suitable For Outdoor Use | Yes |
| Automatic Restart | Yes |
