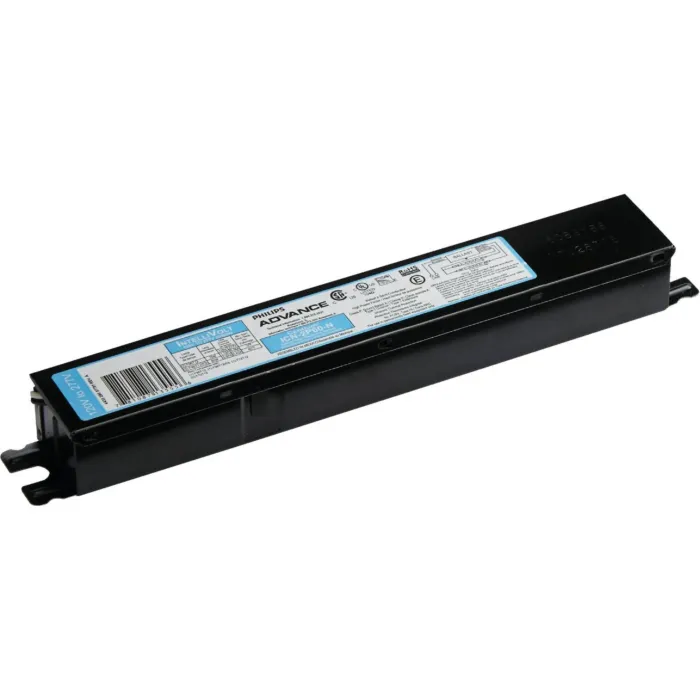

CENTIUM ICN2P60N35I
Brand | Philips Lighting |
---|---|
UPC | 781087135556 |
Store Location (Lititz, PA) | Aisle 10, Section D2 |
Package Length (in) | 8.20" |
Package Width (in) | 3.00" |
Package Height (in) | 0.60" |
Manufacturer Part Number | 503128 |
Order product name | CENTIUM ICN2P60N35I |
EAN/UPC - Product | 781087135556 |
Order code | 913701261901 |
Numerator - Quantity Per Pack | 1 |
Numerator - Packs per outer box | 10 |
Material Nr. (12NC) | 913701261901 |
Net Weight (Piece) | 350.000 g |
Input Voltage | 120 to 277 V |
Input Frequency | 50 to 60 Hz |
Total Harmonic Distortion USA | 10 % |
Ignition Method | Instant Start |
Crestfactor (Nom) | 1.6 |
Ignition Time (Nom) | 0.1 s |
Ballast Factor (Nom) | 0.88 |
Power Factor (Nom) | 0.99 |
Input Current (Max) | 1.13 A |
Input Current (Min) | 0.48 A |
Input Power (Nom) | 135-132 W |
Rated Lamp Power | 75 W |
Housing Material | Metal |
Housing | N |
Housing Dimensions | 9.5" x 1.3" x 1.0" |
Color Input Terminals | No terminals |
Color Output Terminals | No terminals |
Wire Striplength | 0.50/0.375 mm |
Lamp Connection | Parallel |
Wire Length by Color | See data sheet |
Wire Gauge (Nom) | 18AWG mm |
Wire Type | Solid |
Remote Wiring Configuration Allowed | Yes |
Tandem Wiring Configuration Allowed | Yes |
Through Wiring Configuration Allowed | Yes |
Max Ballast-Lamp Distance Remote Wiring | 20' |
Max Ballast-Lamp Distance Tandem Wiring | Any = 20' |
Max Ballast-Lamp Distance Through Wiring | Any = 20' |
Connector Type | No connector |
EMC Immunity Standard | FCC Non-Consumer |
Approval Marks | CSA certificate |
Hum And Noise Level | A |
UL Recognized | No |
T-Case Maximum (Nom) | 70 °C |
Lamp Type | F96T12 |
Number of Lamps | 1/2 piece/unit |
Ballast Type | Electronic Fluorescent |
Base Model | ICN2P60N |
Suitable For Outdoor Use | Yes |
Automatic Restart | Yes |
