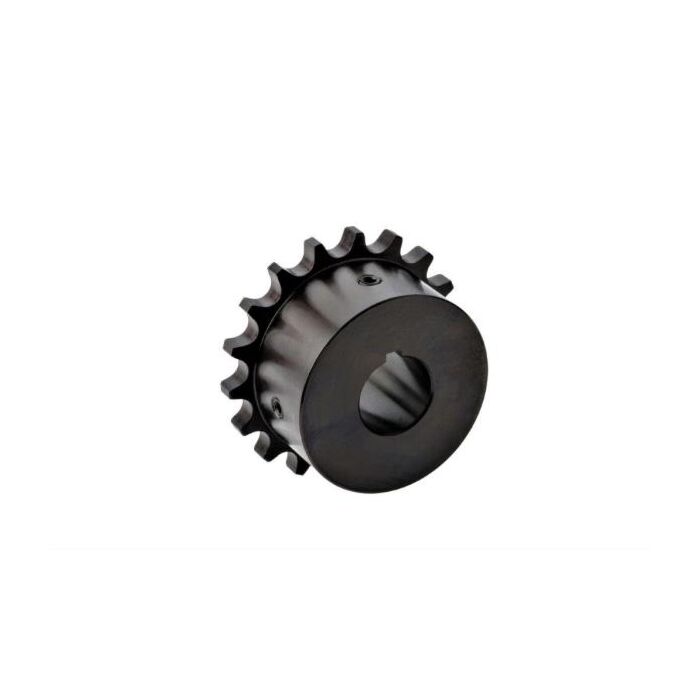

Double Chain Coupler Sprocket for #50-2 Chain with 1-1/4" Shaft
SKU: C501620
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$22.99
Features
Specifications
Heavy-duty double chain shaft coupler half for high-torque applications. Two halves and a chain are required for complete coupling.
- Size: #50-2
- Teeth: 16
- Inner Diameter: 1-1/4"
- Outer Diameter: 3-3/4"
- Overall Length: 3"
| Brand | Amec |
|---|---|
| Store Location (Lititz, PA) | Aisle 09, Section T5 |
| Package Length (in) | 3.60" |
| Package Width (in) | 3.20" |
| Package Height (in) | 1.60" |
| Manufacturer Part Number | 5016X1-1/4H |
| Bore Diameter | 1-1/4 in |
| Outside Diameter | 3.52 in |
| Chain Size | #50 |
| Number of Teeth | 16 |
| Material | Steel |
| Hub Diameter | 2.578 in |
| Length Through Bore | 1.016 in |
| Size | #50-2 |
| Teeth | 16 |
| Inner Diameter | 1-1/4" |
| Outer Diameter | 3-3/4" |
| Overall Length | 3" |
